ANYLOAD SIGNAL AMPLIFIER

A1A-D25 Load Cell Amplifiers

Material: Aluminum alloy shell
24 bit high precision converter and high speed microprocessor
Output signal 0... 10V or 4... 20mA is optional
Applicable to all kinds of strain gauge bridge load cells, such as tension, compression, torque, etc.
Product description: 【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A1A-D25 Load Cell Type All strain gage types,Capacity 1x350Ω directly connected or 4x350Ω or 8x700Ω through a junction box,Compatibility Compat
INQUIRY

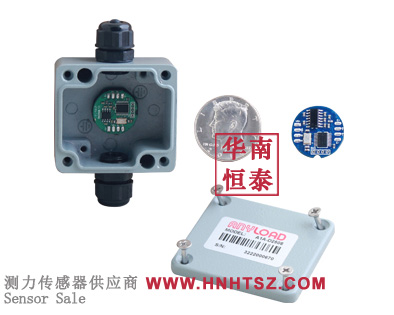

【Shenzhen Huanan Hengtai Industrial Co. LTD】sale ANYLOAD A1A-D25 strain gage amplifiers provide load cell and transducer signal conditioning. The A1A-D25 strain gage amplifiers are DC-powered amplifiers that can drive 1 load cell connected directly. They can also drive several load cells up to 4 x 350Ω load cells or 8 X 700Ω load cells through a junction box. Housed in an aluminum casting enclosure, the A1A amplifiers have 2 through holes for easy installation and a wide output signal of 0V-10V or 4mA-20mA. The A1A-D25 amplifier is equipped with compatibility in most models of I/O Link of Balluff.

Note: The content of this product page is for reference only, and ANYLOAD manufacturer's information shall prevail

ANYLOAD load cell amplifiers A2A-D2 specifications:

Specifications A1A-D25

Load Cell Type All strain gage types

Capacity 1x350Ω directly connected or 4x350Ω or 8x700Ω through a junction box

Compatibility Compatible with IO-LINK Balluff's

Power Supply 24V DC ± 10%

Input Range 0mV- 30mV

Maximum Power Voltage (DC) 30V, 2.5A

Output Signal (Voltage) 0V-10V

Output Signal (Current) 4mA-20mA

Enclosure Material Aluminum casting
