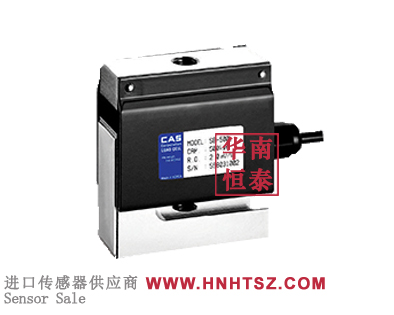

CAS LOAD CELL

SB-100kgf load cell

Shape:S type point load cell
Nonlinearity:≤0.03% FS
Load direction：compression or tension
Model:SB-20kgf,SB-50kgf,SB-75kgf,SB-100kgf,SB-200kgf,SB-250kgf,SB-500kgf,SB-1tf,SB-2tf,
Product description: SB-100kgf is S type structure, can be used in tension and pressure; Single sensor can be used, also can be used with a number of sensors, easy to install, debugging, suitable for material testing mach
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SB-100kgf weighing sensor adopts the working principle of resistance strain type. under the action of external force, elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also be deformed along with the deformation. the resistance of the strain gauge will become larger or smaller. this change in resistance is then converted into an electrical signal (voltage or current) through the corresponding measuring circuit, thus completing the process of converting external forces into electrical signals. the sensor is made of alloy steel and sealed with plastic seal for easy installation and use. applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【CAS load cell SB-100kgf information】
CAS load cell SB-100kgf is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to CAS version
CAS load cell SB-100kgf datasheet download：

CAS load cell SB-100kgf features：

Pull-pressure weighing sensor

Aluminum and steel are available

External installation of steel protective cover, effectively protect the sensor from external impact

Range: 20,50,75,100,200,250,500,1 K, 2 K

Four core shielded cable with polyurethane plug

Suitable for tension scale and tension testing machine

CAS load cell SB-100kgf Applications：

SB-100kgf is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

CAS load cell SB-100kgf selection：
