KYOWA load cell

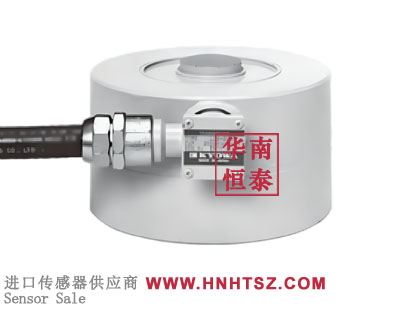

LCH-20TF High-accuracy Compression Load Cell

Remote sensing possible.Watertight structure.Useable in high humidity.
Able to Measure Compression Loads with Nonlinearity 0.02%.
Direction of force: High-accuracy Compression Load Cell
Model:LCH-10TF,LCH-20TF
Product description: LCH-20TF is a high-precision compression load sensor, the use of compact design, makes the installation and layout more convenient, can adapt to a variety of narrow space environment, to meet the need
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LCH-20TF excellent linearity and repeatability. linearity refers to the degree of linear relationship between the sensor output and input, while repeatability refers to the consistency of the output value over multiple measurements under the same condition. these two indicators are crucial to the performance of the sensor. by optimizing the design and manufacturing process, the compression load sensor ensures its good linearity and repeatability, thus improving the accuracy and reliability of the measurement.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA ELECTRONIC INSTRUMENTS High-accuracy Compression Load Cell LCH-20TF information】

Note: The following information is for reference, Please refer to KYOWA ELECTRONIC INSTRUMENTS version
KYOWA ELECTRONIC INSTRUMENTS High-accuracy Compression Load Cell LCH-20TF datasheet download：

KYOWA ELECTRONIC INSTRUMENTS High-accuracy Compression Load Cell LCH-20TF features：

Nonlinearity: ±0.02%RO or less
Lag: ±0.02%RO or less
Repeatability: 0.02%RO or less
Rated output: 2mV/V (4000×10-6 variable) ±0.1%
Allowable operating temperature range: 35~80℃
Temperature compensation range: -10-60℃
Zero temperature effect: ±0.0015%RO/℃ or less
Output temperature effect: ±0.001%RO/℃ or less
Maximum excitation voltage: 20V AC or DC
Recommended excitation voltage: 1-10V AC or DC
Input resistance: 350Ω±0.5%
Output resistance: 350Ω±0.5%
Cable: 0.5mm2, 6-core shielded neoprene armored cable 5m, outer diameter 9.5mm, front end crimping terminal (M4)(shielded cable is not connected to the host)
Safe overload: 200%
Protection level: IP67 (IEC 60529)

KYOWA ELECTRONIC INSTRUMENTS High-accuracy Compression Load Cell LCH-20TF dimension：

KYOWA ELECTRONIC INSTRUMENTS High-accuracy Compression Load Cell LCH-20TF series models：

LCH-20TF

LCH-10TF,LCH-20TF

If you want to know more about price, LCH-20TF delivery time, LCH-20TF manufacturer, LCH-20TF product information, LCH-20TF product specification, LCH-20TF technical parameters, LCH-20TFinstallation and debugging, LCH-20TFwiring mode, please contact E-mail:sales@hnhtsz.com
