ZEMIC LOAD CELL

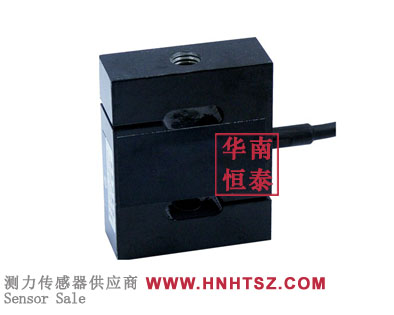

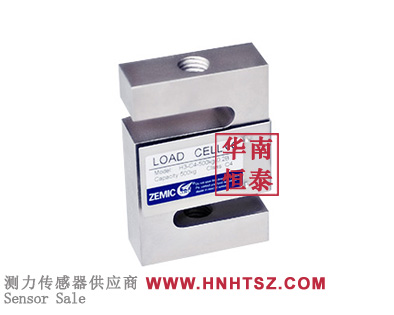

L3V-A5M-200KG-9B load cell

Shape:S type point load cell
Material:Aluminum alloy material
Load direction：compression or tension
Model:L3V-A5M-200KG-9B,L3V-A5M-250KG-9B,L3V-A5M-500KG-9B,L3V-A5M-700KG-9B
Product description: L3V-A5M-200KG-9Bis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side an
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale L3V-A5M-200KG-9B

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell L3V-A5M-200KG-9B information】
ZEMIC load cell L3V-A5M-200KG-9B is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell L3V-A5M-200KG-9B datasheet download：

ZEMIC load cell L3V-A5M-200KG-9B features：

Range: 0.5t~7.5t

Stainless steel material, S-shaped structure, welded seal, pull or pressure bearing;

Protection grade IP68;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

OIML Certification, Certificate number: R60/2000-DE1-10.08;

NTEP Certification, Certificate number: 06-099A1

ZEMIC load cell L3V-A5M-200KG-9B Applications：

L3V-A5M-200KG-9B is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell L3V-A5M-200KG-9B selection：
