ZHONG HANG LOAD CELL

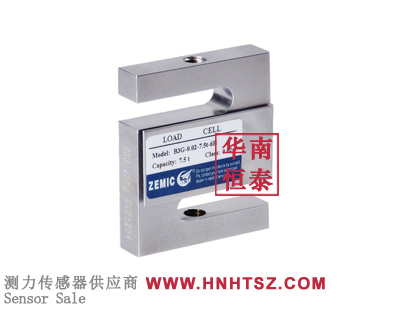

B3G-C3-20K-6YT S type load cell

Shape:S type point load cell
Material:Stainless steel material
Load direction：compression or tension
Model:B3G-C3-25KG-6B,B3G-C3-50KG-6B,B3G-C3-100KG-6B,B3G-C3-150KG-6B,B3G-C3-250KG-6B,B3G-C3-500KG-6B,B3G-C3-1T-6B,B3G-C3-2.5T-6B,B3G-C3-5T-6B,B3G-C3-7.5T-6B,B3G-C3-10T-6B,B3G-C3-20K-6YT
Product description: B3G-C3-20K-6YTis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale B3G-C3-20K-6YT s-type structure design, mainly used for tension measurement, tension sensor belongs to the weighing sensor series, tension sensor structure is simple, wide measuring range, high accuracy, in use, need to keep light handling, avoid vibration, otherwise it will affect the measurement data, due to the particularity of the structure, suitable for hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【 S type load cell B3G-C3-20K-6YT information】
S type load cell B3G-C3-20K-6YT is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to version

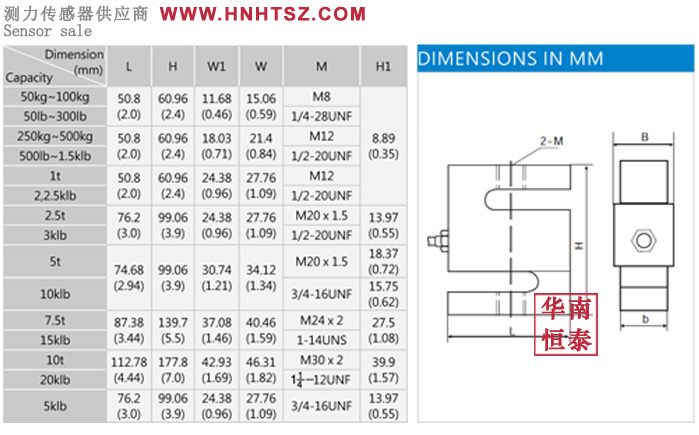

S type load cell B3G-C3-20K-6YT datasheet download：

S type load cell B3G-C3-20K-6YT features：

Range: 0.025-10t

Stainless steel material, S-shaped structure, rubber seal, tensile or compressive bearing;

Protection grade IP67;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

OIML Certification, Certificate number: R60/2000-CN1-06.02;

German PTB test, Certificate No. : D09-06.07;

NTEP Certification, Certificate number: 06-099A1.

S type load cell B3G-C3-20K-6YT Applications：

B3G-C3-20K-6YT is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

S type load cell B3G-C3-20K-6YT selection：

S type load cell B3G-C3-20K-6YT series models：

B3G-C3-25KG-6B,B3G-C3-50KG-6B,B3G-C3-100KG-6B,B3G-C3-150KG-6B,B3G-C3-250KG-6B,B3G-C3-500KG-6B,B3G-C3-1T-6B,B3G-C3-2.5T-6B,B3G-C3-5T-6B,B3G-C3-7.5T-6B,B3G-C3-10T-6B,B3G-C3-20K-6YT
