CHUAN LI LOAD CELL

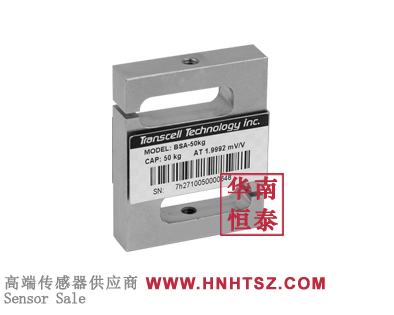

BSA-250lb S type load cell

Shape:S type point load cell
Material:Nickel-plated alloy steel construction
Load direction：compression or tension
Model:BSA-250lb,BSA-25kg,BSA-50kg
Product description: BSA-250lb is S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and anti
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale BSA-250lb weighing sensor adopts the working principle of resistance strain type. under the action of external force, elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also be deformed along with the deformation. the resistance of the strain gauge will become larger or smaller. this change in resistance is then converted into an electrical signal (voltage or current) through the corresponding measuring circuit, thus completing the process of converting external forces into electrical signals. the sensor is made of alloy steel and sealed with plastic seal for easy installation and use. applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【 S type load cell BSA-250lb information】
S type load cell BSA-250lb is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to version
S type load cell BSA-250lb datasheet download：

S type load cell BSA-250lb features：

Range: 250lb~50kg

S-Type load cell
Nickel-plated alloy steel construction

Easy to install, stable & reliable
Suitable for tension measurement, batching systems, industrial scales and package systems, etc.

S type load cell BSA-250lb Applications：

BSA-250lb is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

S type load cell BSA-250lb selection：
