KELI LOAD CELL

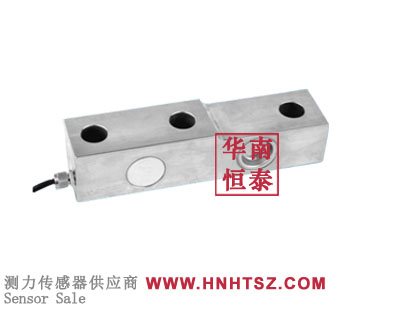

SBO-200kg NINGBO KELI LOAD CELL

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBO-100kg,SBO-200kg,SBO-300kg,SBO-500kg,SBO-1t,SBO-2t,SBO-3t,SBO-5t,SBO-10t,
Product description: SBO-200kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measur
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBO-200kg is a cantilever beam weighing sensor, one end fixed, one end loading, using steel ball force transfer, upper and lower pressure head bearing or double ball head structure, with a good sealing structure. good automatic aligning after force, easy installation, convenient use, good interchangeability.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【 NINGBO KELI LOAD CELL SBO-200kg information】
NINGBO KELI LOAD CELL SBO-200kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to version
NINGBO KELI LOAD CELL SBO-200kg datasheet download：

NINGBO KELI LOAD CELL SBO-200kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

NINGBO KELI LOAD CELL SBO-200kg Applications：

SBO-200kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

NINGBO KELI LOAD CELL SBO-200kg selection：
