KELI LOAD CELL

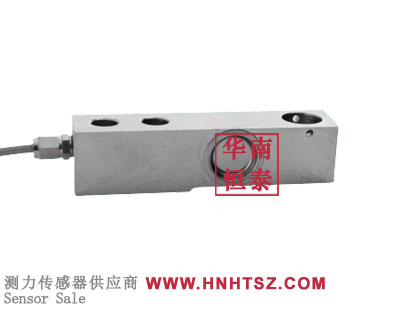

SBT-220kgNINGBO KELI LOAD CELL

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBT-0.22t,SBT-0.55t,SBT-1.1t,SBT-1.76t,SBT-2t,SBT-2.2t,SBT-4.4t,
Product description: SBT-220kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measur
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBT-220kg is a cantilever beam weighing sensor, the output signal is not affected by the change of the bearing of the measuring point, when the general elastic strain beam to accept the load, bending occurs, the normal stress is proportional to the bending moment of the beam, and the bending moment is proportional to the distance of the force point, so the change of the bearing of the force point will cause the measurement fault.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【 NINGBO KELI LOAD CELL SBT-220kg information】
NINGBO KELI LOAD CELL SBT-220kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to version
NINGBO KELI LOAD CELL SBT-220kg datasheet download：

NINGBO KELI LOAD CELL SBT-220kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

NINGBO KELI LOAD CELL SBT-220kg Applications：

SBT-220kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

NINGBO KELI LOAD CELL SBT-220kg selection：
