AMCELLS Load Cell

SBT-4400kgLOAD CELL

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBT-0.22t,SBT-0.55t,SBT-1.1t,SBT-1.76t,SBT-2t,SBT-2.2t,SBT-4.4t,

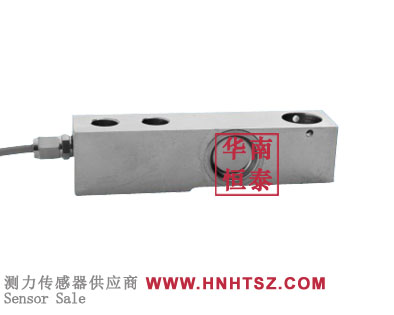

Product description: SBT-4400kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measu
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBT-4400kg is a cantilever beam weighing sensor, the structure is cantilever shear structure, the advantage is easy to use, high precision. cantilever beam shear stress sensor, in a comprehensive consideration of the mechanical structure, design, limit device design and other reasonable choice of sensor technical parameters and sensor upper and lower bearing parts on the basis of the structure of the form, most sensors can be used for dynamic loadometer, even including pull type and related performance of the poor ring sensor.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【AMCELLS LOAD CELL SBT-4400kg information】
AMCELLS LOAD CELL SBT-4400kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to AMCELLS version
AMCELLS LOAD CELL SBT-4400kg datasheet download：

AMCELLS LOAD CELL SBT-4400kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

AMCELLS LOAD CELL SBT-4400kg Applications：

SBT-4400kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

AMCELLS LOAD CELL SBT-4400kg selection：
