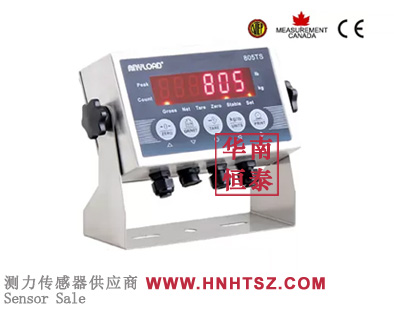

805TS-B-19B Digital Weight Indicator

The ANYLOAD 805TS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805TS has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and can drive up to eight 350Ω or sixteen 700Ω load cells through a junction box. With a SS304 stainless steel wash down enclosure, the 805TS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and has the added bonus of being NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.

• NTEP III/IIIL, 10 000 approved
• Measurement Canada III, 10 000; III HD 20 000
• Material: Stainless steel SS304
• IP Rating: IP66
• LED 6-digit display
• Power Supply: External AC adaptor, 110VAC +10% /-15% or 220VAC +10% /-15%, 50-60Hz
• Parameter and calibration settings are performed on the front panel
• Units of Measurement: kg, lb
• Indication of improper operation and fault
• Two-way relay signal output
• Equipped with RS-232 and RS-485 connecting ports
• Print functions with programmable print format
• Serial print interface
• Built-in clock
• Functions:Auto Zero Scale, Auto Zero Tracking, PEAK, COUNT, Zero Scale, TARE, GROSS/NET
• Password Function to provide easy method in adjusting the parameter settings without opening the back panel. Applicable only if legal for trade is not required
•
