CELTRON LOAD CELL

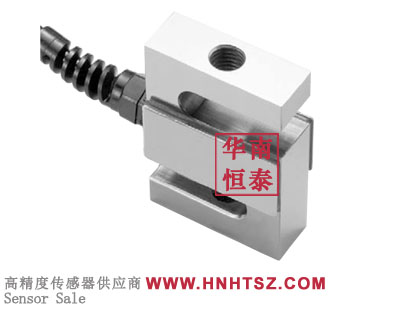

STC-SS-750lbs load cell

Shape: S-type load cell
Nonlinearity: 0.02%±% of rated output(SS:0.05)
Load Direction:tension&compression
Model:STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T
Product description: STC-SS-750lbs use for measuring tension or pressure, S shape, can be used alone, or can be output multiple at the same time through the assembly, used in mechanical reconstruction (machine to electric
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale STC-SS-750lbs the load cell adopts the working principle of resistance strain gauge. under the action of external force, the elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also deform with deformation, and the resistance of the strain gauge will become larger or smaller. this resistance change is then converted into an electrical signal (voltage or current) through the corresponding measurement circuit, thus completing the process of converting the external force into an electrical signal.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【CELTRON load cell STC-SS-750lbs information】

Note: The following information is for reference, Please refer to CELTRON version
CELTRON load cell STC-SS-750lbs datasheet download：

CELTRON load cell STC-SS-750lbs features：
Recommended excitation voltage :10V,AC/DC
Operating temperature range :-10℃~+40℃
Excitation voltage :15V,AC/DC
Temperature compensation range :-20℃~+60℃
Rated output :3mV/V±10%
Zero point balance :±1%
Creep error(20 minutes) :0.02%R.O
Input impedance: 385Ω±5Ω
Output impedance: 350Ω±3Ω
Insulation impedance gt:5000MΩ
Non-linearity :±0.02%R.O(SS:0.05)
Repeatability :±0.03%R.O
Safe load :150%
Failure load :300%
Moisture-proof rubber seal
Bidirectional (tension/compression)

CELTRON load cell STC-SS-750lbs dimension：

CELTRON load cell STC-SS-750lbs series models：

STC-SS-750lbs STC-5kgAL,STC-10kgAL
STC-25kg STC-50kg STC-100kg STC-150KG STC-250kg STC-500kg STC-1T STC-2T STC-2.5T STC-5T

If you want to know more about STC-SS-750lbs price, STC-SS-750lbs delivery time, STC-SS-750lbs manufacturer, STC-SS-750lbs product information, STC-SS-750lbs product specification,STC-SS-750lbs technical parameters, STC-SS-750lbs installation and debugging, STC-SS-750lbs wiring mode, please contact E-mail:sales@hnhtsz.com
