CELTRON LOAD CELL

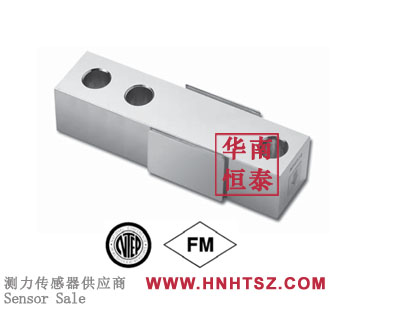

SQB-1TSS VISHAY single ended shear beam load cell

Shape: Single ended shear beam load cell
Material: alloy steel
Wire length: 6.1m
Model:SQB-250kg SQB-500kg SQB-1000KG SQB-1500KG SQB-2000KG SQB-2500KG SQB-5000KG SQB-1T SQB-1.5T SQB-2T SQB-2.5T SQB-5T
Product description: SQB-1TSS single ended shear beam load cell can be used single or multiple, high precision, high stability, unique bearing blind hole design, easy to install, fast, suitable for platform scale, mixing
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SQB-1TSS it adopts a unique single-end shear beam structure design, and its core part is a precision-machined alloy steel beam. when the external force acts on the sensor, the beam body will produce a small shear deformation, which is converted into an electrical signal output by the internal precision resistance strain gauge. this design allows the sensor to have extremely high sensitivity and accuracy, enabling accurate measurement of a variety of small force changes.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
In stock,quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【CELTRON plant VISHAY single ended shear beam load cell SQB-1TSS information】

Note: The following information is for reference, Please refer to CELTRON plant version
CELTRON plant VISHAY single ended shear beam load cell SQB-1TSS datasheet download：

CELTRON plant VISHAY single ended shear beam load cell SQB-1TSS features：
SQB-1TSS is a single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.
FEATURES
Capacities: 500 to 20Klb, 250 to 5000kg
High side-load tolerance
Electroless nickel-plated-alloy tool steel
NTEP Class III 5000M for SQB, SQB-F and SQB-SS
available from 1K to 10Klb
SQB-SS stainless steel construction
OPTIONAL FEATURE
FM approval available
APPLICATIONS
Truck/rail scales
Silo/hopper/tank weighing
Platform scales (multiple load cells)
Pallet truck scales
Packaging machines

CELTRON plant VISHAY single ended shear beam load cell SQB-1TSS dimension：

CELTRON plant VISHAY single ended shear beam load cell SQB-1TSS series models：

SQB-1TSS SQB-250kg SQB-500kg SQB-1000KG SQB-1500KG SQB-2000KG SQB-2500KG SQB-5000KG SQB-1T SQB-1.5T SQB-2T SQB-2.5T SQB-5T

If you want to know more about SQB-1TSS price, SQB-1TSS delivery time, SQB-1TSS manufacturer, SQB-1TSS product information, SQB-1TSS product specification,SQB-1TSS technical parameters, SQB-1TSS installation and debugging, SQB-1TSS wiring mode, please contact E-mail:sales@hnhtsz.com
