CELTRON LOAD CELL

SQB-H-4KLBS VISHAY single ended shear beam load cell

Shape: Single ended shear beam load cell
Material: alloy steel
Wire length: 6.1m
Model:SQB-250kg SQB-500kg SQB-1000KG SQB-1500KG SQB-2000KG SQB-2500KG SQB-5000KG SQB-1T SQB-1.5T SQB-2T SQB-2.5T SQB-5T
Product description: SQB-H-4KLBS single ended shear beam load cell can be used single or multiple, high precision, high stability, unique bearing blind hole design, easy to install, fast, suitable for platform scale, mixi
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SQB-H-4KLBS it is a very excellent cantilever beam sensor, which is widely used in various fields because of its high precision, high reliability and wide applicability. in industrial automation, cantilever sensors can be used to monitor parameters such as weight, pressure and position of materials on production lines. in robotics, it can be used to perceive the interaction between the robot and the environment. in the aerospace field, it can be used to measure the impact force of the aircraft during takeoff and landing. in addition, the cantilever sensor can also be used in environmental monitoring, medical equipment, transportation and other fields where force measurement is required.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
In stock,quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【CELTRON plant VISHAY single ended shear beam load cell SQB-H-4KLBS information】

Note: The following information is for reference, Please refer to CELTRON plant version
CELTRON plant VISHAY single ended shear beam load cell SQB-H-4KLBS datasheet download：

CELTRON plant VISHAY single ended shear beam load cell SQB-H-4KLBS features：
SQB-H-4KLBS is a single-ended shear beam load cell designed for multiple cell applications such as low profile platform or small tank scales when used with proper mounting accessories. It is insensitive to side loading and capable of reversed loading.
FEATURES
Capacities: 500 to 20Klb, 250 to 5000kg
High side-load tolerance
Electroless nickel-plated-alloy tool steel
NTEP Class III 5000M for SQB, SQB-F and SQB-SS
available from 1K to 10Klb
SQB-SS stainless steel construction
OPTIONAL FEATURE
FM approval available
APPLICATIONS
Truck/rail scales
Silo/hopper/tank weighing
Platform scales (multiple load cells)
Pallet truck scales
Packaging machines

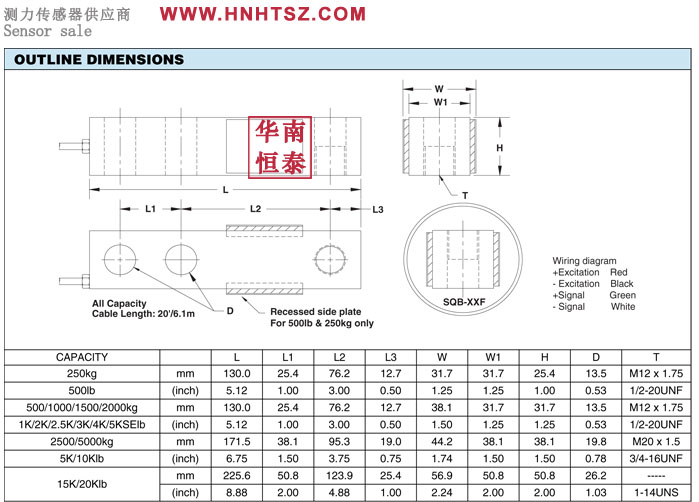

CELTRON plant VISHAY single ended shear beam load cell SQB-H-4KLBS dimension：

CELTRON plant VISHAY single ended shear beam load cell SQB-H-4KLBS series models：

SQB-H-4KLBS SQB-250kg SQB-500kg SQB-1000KG SQB-1500KG SQB-2000KG SQB-2500KG SQB-5000KG SQB-1T SQB-1.5T SQB-2T SQB-2.5T SQB-5T

If you want to know more about SQB-H-4KLBS price, SQB-H-4KLBS delivery time, SQB-H-4KLBS manufacturer, SQB-H-4KLBS product information, SQB-H-4KLBS product specification,SQB-H-4KLBS technical parameters, SQB-H-4KLBS installation and debugging, SQB-H-4KLBS wiring mode, please contact E-mail:sales@hnhtsz.com
