HBM LOAD CELL

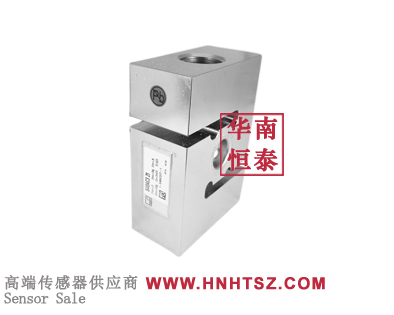

1-S40AC3-1TD-1 LOAD CELL

Shape:S type point load cell
Material: stainless steel
Load direction：compression or tension
Model:1-S40AC3/50KG-1,1-S40AC3/100KG-1,1-S40AC3/200KG-1, 1-S40AC3/500KG-1, 1-S40AC3/1T-1, 1-S40AC3/2T-1, 1-S40AC3/3T-1, 1-S40AC3/5T-1,
Product description: 1-S40AC3-1TD-1 force sensors are used for tensile and compressive force measurement and are widely used in a variety of static and dynamic measurement applications. It has extremely high precision, su
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 1-S40AC3-1TD-1 weighing sensor adopts the working principle of resistance strain type. under the action of external force, elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also be deformed along with the deformation. the resistance of the strain gauge will become larger or smaller. this change in resistance is then converted into an electrical signal (voltage or current) through the corresponding measuring circuit, thus completing the process of converting external forces into electrical signals. the sensor is made of alloy steel and sealed with plastic seal for easy installation and use. applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【HBM LOAD CELL 1-S40AC3-1TD-1 information】
HBM LOAD CELL 1-S40AC3-1TD-1 is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to HBM version
HBM LOAD CELL 1-S40AC3-1TD-1 datasheet download：

HBM LOAD CELL 1-S40AC3-1TD-1 features：

The temperature dependence of zero is very low

Parasitic torques and forces have very little effect on the measured results

High durability

Stainless steel material measuring body

Compact seal

Immediately available

HBM LOAD CELL 1-S40AC3-1TD-1 Applications：

1-S40AC3-1TD-1 is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

HBM LOAD CELL 1-S40AC3-1TD-1 selection：
