HBM LOAD CELL

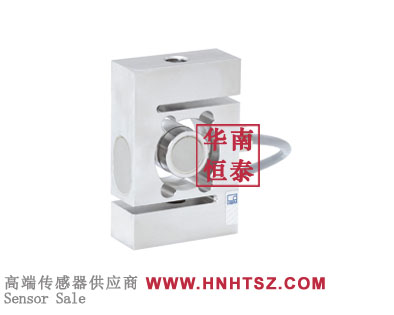

1-S9M-1KN-1 LOAD CELL

Shape:S type point load cell
Material: stainless steel
Load direction：compression or tension
Model:S9M/500N,S9M/1KN,S9M/2KN,S9M/5KN,S9M/10KN,S9M/20KN,S9M/50KN
Product description: 1-S9M-1KN-1 force sensors are used for tensile and compressive force measurement and are widely used in a variety of static and dynamic measurement applications. With extremely high accuracy, it is id
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 1-S9M-1KN-1 s-type pull, pressure sensor is a common sensor in the sensor, mainly used to measure the tension and pressure between solid, general people also called s-type pull pressure sensor, because of its shape like s shape, so it is also known as s-type weighing sensor. using sealant sealing, easy to install, easy to use. suitable for hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【HBM LOAD CELL 1-S9M-1KN-1 information】
HBM LOAD CELL 1-S9M-1KN-1 is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to HBM version

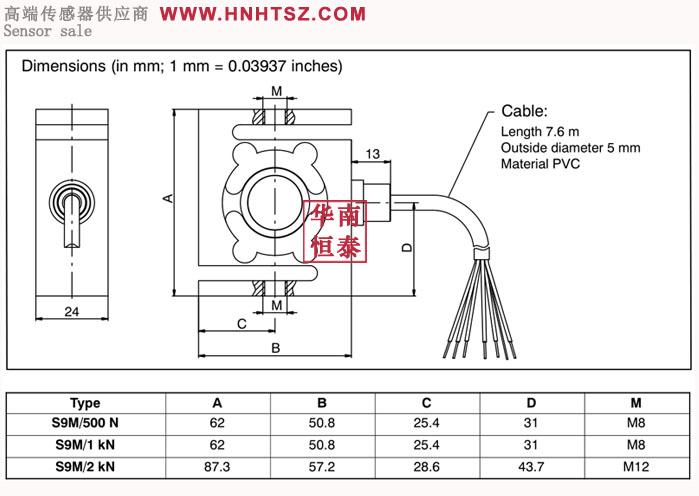

HBM LOAD CELL 1-S9M-1KN-1 datasheet download：

HBM LOAD CELL 1-S9M-1KN-1 features：

HBM accuracy level 0.02

The temperature dependence of zero is very low

Parasitic torques and forces have very little effect on the measured results

High durability

Stainless steel material measuring body

Compact seal

Immediately available

Variety of cable lengths for S9M: available according to your application

Optional connector for HBM industrial amplifiers

Optional TEDS (spreadsheet for automatic sensor identification)

HBM LOAD CELL 1-S9M-1KN-1 Applications：

1-S9M-1KN-1 is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

HBM LOAD CELL 1-S9M-1KN-1 selection：
