KELI Load Cell

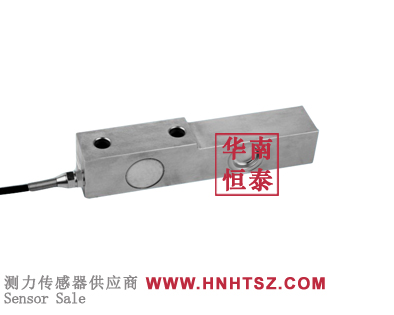

SB-5t load cell

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SB-300kg,SB-500kg,SB-1t,SB-2t,SB-3t,SB-5t,SB-7.5t,SB-8t,SB-10t,SB-15t,SB-20t,SB-25t
Product description: SB-5t is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measuremen
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SB-5t is a cantilever beam weighing sensor, good linearity, high precision, because the strain gauge is attached to the web of the i-beam, and the base axis into 45 degrees of orientation, it only measures the principal stress corresponding to the shear stress, not affected by bending stress, so good linearity, high precision.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KELI load cell SB-5t information】
KELI load cell SB-5t is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to KELI version
KELI load cell SB-5t datasheet download：

KELI load cell SB-5t features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

KELI load cell SB-5t Applications：

SB-5t is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

KELI load cell SB-5t selection：
