KELI Load Cell

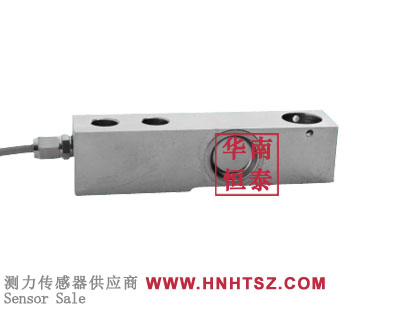

SBT-ASS-2tLOAD CELL

Shape:single-ended Shear Beam
Material:stainless steel construction
Load direction：compression
Model:SBT-0.22t,SBT-0.55t,SBT-1.1t,SBT-1.76t,SBT-2t,SBT-2.2t,SBT-4.4t,
Product description: SBT-ASS-2t is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measu
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBT-ASS-2t is a cantilever beam weighing sensor, cantilever beam weighing sensor stress mode, cantilever beam weighing sensor general installation method, directly the end of the sensor out of the wire is fixed on the equipment through the screw, the other end is used to force, downward pressure, pay attention to the cantilever beam sensor installation, the middle part of the need to hang, one end of the two ends of the fixed one end of the force.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KELI LOAD CELL SBT-ASS-2t information】
KELI LOAD CELL SBT-ASS-2t is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to KELI version
KELI LOAD CELL SBT-ASS-2t datasheet download：

KELI LOAD CELL SBT-ASS-2t features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

KELI LOAD CELL SBT-ASS-2t Applications：

SBT-ASS-2t is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

KELI LOAD CELL SBT-ASS-2t selection：
