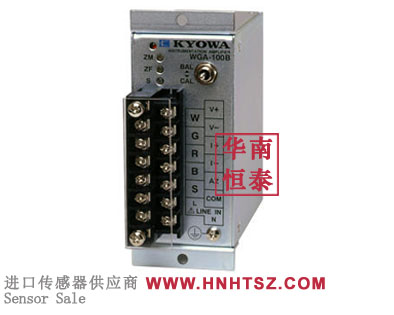

WGA-100B-01AC amplifier

KYOWA amplifier WGA-100B-01AC features：
Number of Measuring Channels:1

Applicable Transducers:Strain-gage transducers

ApplicableBridge Resistance:87.5 to 350Ω(up to 4 transducerswith bridge resistance 3509 can be connected in parallel;bridge excitationvoltageis limited to 5Vfor transducers withbridge resistance 1752or less)

Bridge Excitation Voltage:10 or 5 VDC,switchable by chang-nginternal jumper connection

Rated Output:Dual output

Voltage:±10V(oad resistance 2 kQ or more)

Current:4 to 20 mA (load resistance 5000 or less),corre-sponding to voltage outputof O to 10V

Zero Adjustment Range:±1.5 mV/V,by trimmer or auto bal-ance (WGA-100B-10/11/12)

Sensitivity Adjustment Range:x1000 or x4000,switchable bychanging internal jumper connection

Adjustable between x1/1 and x1/4 bythe trimmer

Calibration:0.25,0.5 or 1.0 mV/V,switchable by changing in-ternal jumper connecton

FrequencyResponse:10,30,100 or 500 Hz,switchable bychanging internal jumper connectionAttenuation:-12 dB/oct.

OperatingTemperature/Humidity Range:-10 to50℃,20 to 80%RH(noncondensing)PowerSupply:Refer totable above.

Dimensions:44(W)x90(H)×80(D)mm (excluding protrusions)

Panel Cut Dimensions:45.0×93.4 mmWeight:Approx.400 g

EMC:Conforms to EN 50081-1,50082-2

Safety Standard:Conforms to EN 61010-1

Optional Accessories:

AC power cables

P-23 for 100 VAC

P-24 for 200 VAC

DIN rail mounting fixture H-11224
