KYOWA INSTRUMENTATION AMPLIFIER

  • WGA-100B-02 amplifier

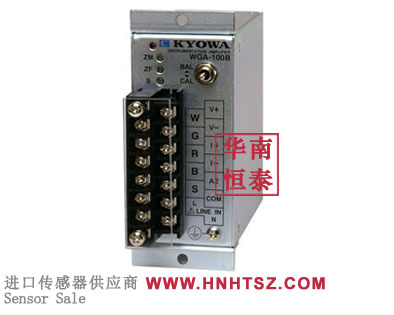

WGA-100B-02 amplifier

WGA-100B-02 amplifier

  • Applicable Transducers Strain-gage transducers
  • Applicable Bridge Resistance 87.5 Ω to 10 kΩ (Up to 4 transducers with 350 Ω bridge resistance connected in parallel)
  • Measuring Range ±3.2 mV/V (±6400 μm/m)
  • Model:WGA-100B-00,WGA-100B-01,WGA-100B-02,WGA-100B-10,WGA-100B-11,WGA-100B-12
  • Product description: WGA-100B-02 is a compact,lightweight and low-cost instrumentation amplifier suitablefor measurement of loadpressure,torqueand displacement in combination with straingage transducers.Available in 2 typ
  • INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale WGA-100B-02 is fine processing technology: the use of advanced processing equipment and technology to ensure the accuracy and consistency of each component, improve the overall performance of the product.

 Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA amplifier WGA-100B-02 information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA amplifier WGA-100B-02 datasheet download:


KYOWA amplifier WGA-100B-02 features
Number of Measuring Channels:1

Applicable Transducers:Strain-gage transducers

ApplicableBridge Resistance:87.5 to 350Ω(up to 4 transducerswith bridge resistance 3509 can be connected in parallel;bridge excitationvoltageis limited to 5Vfor transducers withbridge resistance 1752or less)

Bridge Excitation Voltage:10 or 5 VDC,switchable by chang-nginternal jumper connection

Rated Output:Dual output

Voltage:±10V(oad resistance 2 kQ or more)

Current:4 to 20 mA (load resistance 5000 or less),corre-sponding to voltage outputof O to 10V

Zero Adjustment Range:±1.5 mV/V,by trimmer or auto bal-ance (WGA-100B-10/11/12)

Sensitivity Adjustment Range:x1000 or x4000,switchable bychanging internal jumper connection

Adjustable between x1/1 and x1/4 bythe trimmer

Calibration:0.25,0.5 or 1.0 mV/V,switchable by changing in-ternal jumper connecton

FrequencyResponse:10,30,100 or 500 Hz,switchable bychanging internal jumper connectionAttenuation:-12 dB/oct.

OperatingTemperature/Humidity Range:-10 to50℃,20 to 80%RH(noncondensing)PowerSupply:Refer totable above.

Dimensions:44(W)x90(H)×80(D)mm (excluding protrusions)

Panel Cut Dimensions:45.0×93.4 mmWeight:Approx.400 g

EMC:Conforms to EN 50081-1,50082-2

Safety Standard:Conforms to EN 61010-1

Optional Accessories:

AC power cables

P-23 for 100 VAC

P-24 for 200 VAC

DIN rail mounting fixture H-11224



KYOWA amplifier WGA-100B-02 dimension:

KYOWA amplifier WGA-100B-02 series models:

WGA-100B-02

WGA-100B-00,WGA-100B-01,WGA-100B-02,WGA-100B-10,WGA-100B-11,WGA-100B-12

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales    KYOWAin the design, the user's needs are fully considered. it uses advanced circuit design to ensure that the signal is effectively amplified during transmission, thus improving the quality of the signal. at the same time, the amplifier also has the characteristics of low noise and low power consumption, so that it can perform well in a variety of application scenarios.
