KYOWA INSTRUMENTATION AMPLIFIER

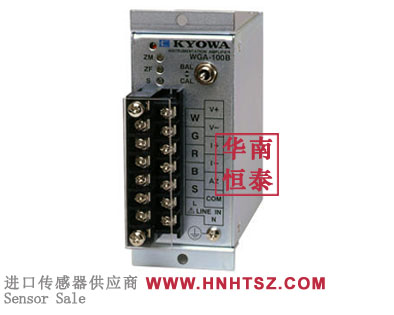

  • WGA-100B-10DC amplifier
WGA-100B-10DC amplifier

WGA-100B-10DC amplifier

  • Applicable Transducers Strain-gage transducers
  • Applicable Bridge Resistance 87.5 Ω to 10 kΩ (Up to 4 transducers with 350 Ω bridge resistance connected in parallel)
  • Measuring Range ±3.2 mV/V (±6400 μm/m)
  • Model:WGA-100B-00,WGA-100B-01,WGA-100B-02,WGA-100B-10,WGA-100B-11,WGA-100B-12
  • Product description: WGA-100B-10DC is a compact,lightweight and low-cost instrumentation amplifier suitablefor measurement of loadpressure,torqueand displacement in combination with straingage transducers.Available in 2 t
  • INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale WGA-100B-10DC is shows very high performance. it is widely used in industrial automation and other fields, and provides stable signal support for various information transmission systems. whether in indoor or outdoor environments, the amplifier maintains excellent performance, providing users with a clear and stable signal reception experience.

 Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【KYOWA amplifier WGA-100B-10DC information】

Note: The following information is for reference, Please refer to KYOWA version
KYOWA amplifier WGA-100B-10DC datasheet download:


KYOWA amplifier WGA-100B-10DC features
Number of Measuring Channels:1

Applicable Transducers:Strain-gage transducers

ApplicableBridge Resistance:87.5 to 350Ω(up to 4 transducerswith bridge resistance 3509 can be connected in parallel;bridge excitationvoltageis limited to 5Vfor transducers withbridge resistance 1752or less)

Bridge Excitation Voltage:10 or 5 VDC,switchable by chang-nginternal jumper connection

Rated Output:Dual output

Voltage:±10V(oad resistance 2 kQ or more)

Current:4 to 20 mA (load resistance 5000 or less),corre-sponding to voltage outputof O to 10V

Zero Adjustment Range:±1.5 mV/V,by trimmer or auto bal-ance (WGA-100B-10/11/12)

Sensitivity Adjustment Range:x1000 or x4000,switchable bychanging internal jumper connection

Adjustable between x1/1 and x1/4 bythe trimmer

Calibration:0.25,0.5 or 1.0 mV/V,switchable by changing in-ternal jumper connecton

FrequencyResponse:10,30,100 or 500 Hz,switchable bychanging internal jumper connectionAttenuation:-12 dB/oct.

OperatingTemperature/Humidity Range:-10 to50℃,20 to 80%RH(noncondensing)PowerSupply:Refer totable above.

Dimensions:44(W)x90(H)×80(D)mm (excluding protrusions)

Panel Cut Dimensions:45.0×93.4 mmWeight:Approx.400 g

EMC:Conforms to EN 50081-1,50082-2

Safety Standard:Conforms to EN 61010-1
