Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale LMB-A-50N is more flexible in light weight, low cross-section, and well-packaged, and its price is very affordable compared to the same type and performance of micro-sensors. Because the low-cost sensor is very thin, and the force response is very sensitive, signal transmission stability, so get more and more limited space design needs force measuring equipment designers favor.
【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation

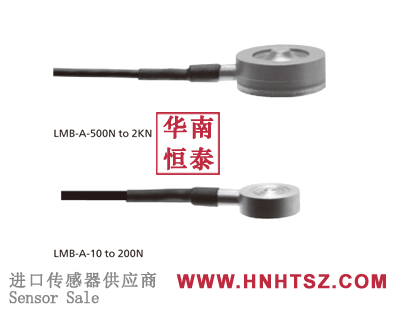

【KYOWA load cell LMB-A-50N information】
KYOWA load cell LMB-A-50N is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
Note: The following information is for reference, Please refer to KYOWA version
KYOWA load cell LMB-A-50N datasheet download：
KYOWA load cell LMB-A-50N features：
●Material: Stainless steel
●Rated Capacities: 10N，50N,100N,200N,500N,1kN,2kN
●Sensitivity：1.4 mV/V or more but 10N: 0.5 mV/V or more
●Safe Overload: 150%
●Nonlinearity Within ±0.5% RO
●Hysteresis Within ±0.5% RO
●Repeatability Within ±0.3% RO
●Safe Temperature -10 to 80°C (Non-condensing)
●Compensated Temperature 0 to 70°C (Non-condensing)
●Safe Excitation 7 V AC or DC
●Recommended Excitation 1 to 5 V AC or DC
●Input Resistance 350 Ω±2.5%
●Output Resistance 350 Ω±2.5%
●Cable 4-conductor (0.035 mm2) vinyl shielded cable,1.7 mm diameter by 2 m long, bared at the tip(Shield wire is not connected to the case.)
