Lorenz Torque Sensor

DR-2212-50NM Lorenz Messtechnik torque sensor

Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Speed up to 15000 min-1
Model:DR-2212/ DR-2212-P and DR-2212-R / DR-2212-R-P
Product description: DR-2212-50NM the sensor has a non-contact digital signal transmission from the rotor to the stator without signal tampering of the measurement data. Therefore, it is highly accurate and maintenance-fr
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DR-2212-50NM excellent performance in long running, with high stability. the choice of internal structure and materials ensures that the sensor will not have significant performance degradation or drift during long-term use. this allows the sensor to provide consistent torque data output.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

Website display products are limited, If you can't find the product you need, please contact us

【Support services】
Lorenz MesstechnikManufacturer's supply，quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2212-50NM information】

Note: The following information is for reference, Please refer to Lorenz Messtechnik version
Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2212-50NM datasheet download：

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2212-50NM features：
DR-2212-50NM This sensor has a contactless and digital signal transmission from rotor to stator without signal falsification of the measurement data. It is therefore highly accurate and maintenance-free.

FEATURES
Torque sensor for e.g. test bench applications
Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Integrated speed/angle measurement, optional
Speed up to 15000 min-1
Very short axial length
High torsional stiffness
Simple handling and assembly
Special versions on request

APPLICATION

Research and development
Process measuring and control technology
Fully automated machining centres
Measuring and control devices
Tool engineering
Special mechanical engineering

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2212-50NM dimension：

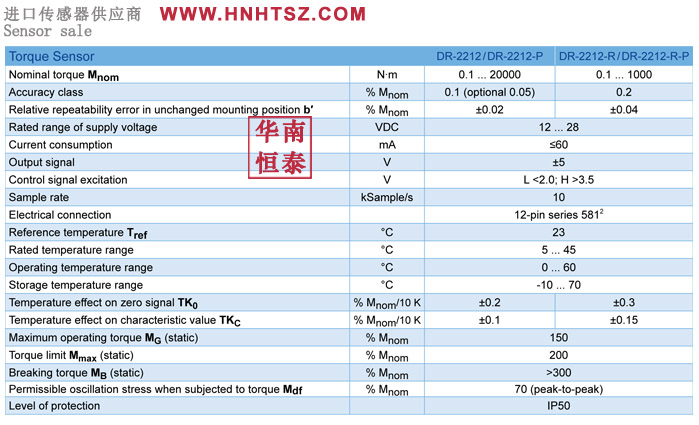

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2212-50NM series models：

DR-2212-50NM

DR-2212/ DR-2212-P and DR-2212-R / DR-2212-R-P

If you want to know more about DR-2212-50NM price, DR-2212-50NM delivery time, DR-2212-50NM manufacturer, DR-2212-50NM product information, DR-2212-50NM product specification,DR-2212-50NM technical parameters, DR-2212-50NM installation and debugging, DR-2212-50NM wiring mode, please contact E-mail:sales@hnhtsz.com
