Lorenz Torque Sensor

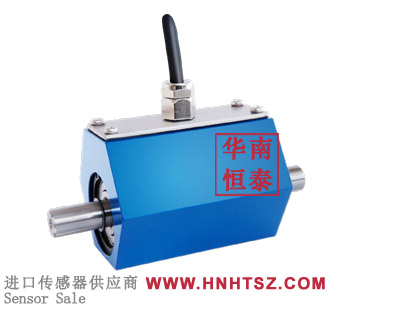

DR-2477-2NM Lorenz Messtechnik torque sensor

Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1
Model:DR-2477/DR-2477-P
Product description: DR-2477-2NM the sensor has a non-contact digital signal transmission from the rotor to the stator without signal tampering of the measurement data. Therefore, it is highly accurate and maintenance-fre
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DR-2477-2NM made of high-strength material, it can withstand large mechanical shock and vibration. this durability allows the torque sensor to maintain stable performance even in harsh working environments, extending the service life of the equipment.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

Website display products are limited, If you can't find the product you need, please contact us

【Support services】
Lorenz MesstechnikManufacturer's supply，quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2477-2NM information】

Note: The following information is for reference, Please refer to Lorenz Messtechnik version

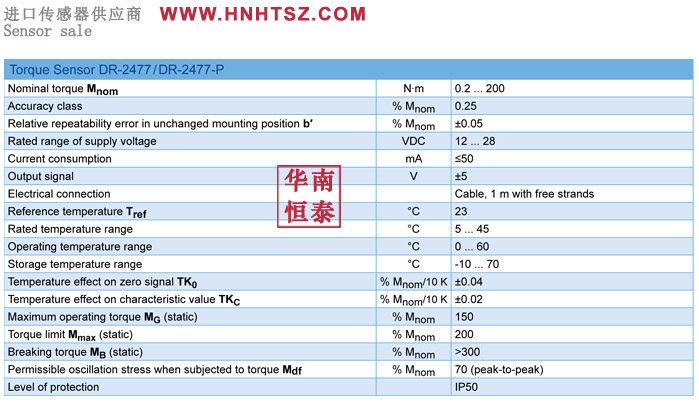

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2477-2NM datasheet download：

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2477-2NM features：
DR-2477-2NM This sensor has a contactless and digital signal transmission from rotor to stator without signal falsification of the measurement data. It is therefore highly accurate and maintenance-free.

FEATURES
Torque sensor for e.g. test bench applications
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1

For stiff and floating sensor assembly
Very short axial length
High torsional stiffness
Simple handling and assembly
Special versions on request

APPLICATION

Research and development
Process measuring and control technology
Fully automated machining centres
Measuring and control devices
Tool engineering
Special mechanical engineering

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2477-2NM dimension：

Lorenz Messtechnik Lorenz Messtechnik torque sensor DR-2477-2NM series models：

DR-2477-2NM

DR-2477/DR-2477-P

If you want to know more about DR-2477-2NM price, DR-2477-2NM delivery time, DR-2477-2NM manufacturer, DR-2477-2NM product information, DR-2477-2NM product specification,DR-2477-2NM technical parameters, DR-2477-2NM installation and debugging, DR-2477-2NM wiring mode, please contact E-mail:sales@hnhtsz.com
