Lorenz Torque Sensor

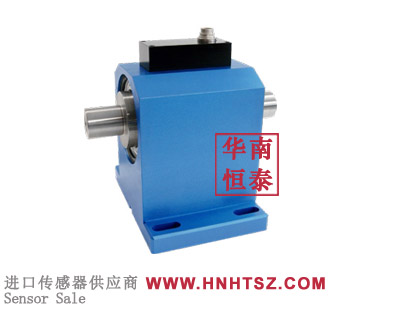

DR-2212-P-2NM torque sensor

Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Speed up to 15000 min-1
Model:DR-2212/ DR-2212-P and DR-2212-R / DR-2212-R-P
Product description: DR-2212-P-2NM the sensor has a non-contact digital signal transmission from the rotor to the stator without signal tampering of the measurement data. Therefore, it is highly accurate and maintenance-f
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DR-2212-P-2NM modular design, easy and quick installation. users can choose the appropriate installation mode according to the actual requirements, such as shaft end installation, flange installation, etc. at the same time, the sensor is also equipped with a complete range of accessories and tools, making the installation process easier and more convenient.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

Website display products are limited, If you can't find the product you need, please contact us

【Support services】
LorenzManufacturer's supply，quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Lorenz torque sensor DR-2212-P-2NM information】

Note: The following information is for reference, Please refer to Lorenz version
Lorenz torque sensor DR-2212-P-2NM datasheet download：

Lorenz torque sensor DR-2212-P-2NM features：
DR-2212-P-2NM This sensor has a contactless and digital signal transmission from rotor to stator without signal falsification of the measurement data. It is therefore highly accurate and maintenance-free.

FEATURES
Torque sensor for e.g. test bench applications
Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Integrated speed/angle measurement, optional
Speed up to 15000 min-1
Very short axial length
High torsional stiffness
Simple handling and assembly
Special versions on request

APPLICATION

Research and development
Process measuring and control technology
Fully automated machining centres
Measuring and control devices
Tool engineering
Special mechanical engineering

Lorenz torque sensor DR-2212-P-2NM dimension：

Lorenz torque sensor DR-2212-P-2NM series models：

DR-2212-P-2NM

DR-2212/ DR-2212-P and DR-2212-R / DR-2212-R-P

If you want to know more about DR-2212-P-2NM price, DR-2212-P-2NM delivery time, DR-2212-P-2NM manufacturer, DR-2212-P-2NM product information, DR-2212-P-2NM product specification,DR-2212-P-2NM technical parameters, DR-2212-P-2NM installation and debugging, DR-2212-P-2NM wiring mode, please contact E-mail:sales@hnhtsz.com
