Lorenz Torque Sensor

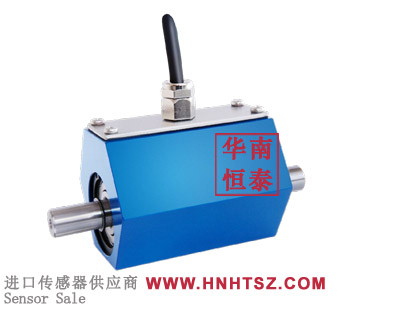

DR-2477-P-100NM torque sensor

Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1
Model:DR-2477/DR-2477-P
Product description: DR-2477-P-100NM the sensor has a non-contact digital signal transmission from the rotor to the stator without signal tampering of the measurement data. Therefore, it is highly accurate and maintenance
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DR-2477-P-100NM it has a wide operating temperature range and can work normally under different ambient temperatures. the internal structure and material selection ensure that the sensor can maintain stable performance in high or low temperature environments. this allows the sensor to adapt to a variety of complex working environment requirements.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

Website display products are limited, If you can't find the product you need, please contact us

【Support services】
Lorenz sensorManufacturer's supply，quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Lorenz sensor torque sensor DR-2477-P-100NM information】

Note: The following information is for reference, Please refer to Lorenz sensor version
Lorenz sensor torque sensor DR-2477-P-100NM datasheet download：

Lorenz sensor torque sensor DR-2477-P-100NM features：
DR-2477-P-100NM This sensor has a contactless and digital signal transmission from rotor to stator without signal falsification of the measurement data. It is therefore highly accurate and maintenance-free.

FEATURES
Torque sensor for e.g. test bench applications
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1

For stiff and floating sensor assembly
Very short axial length
High torsional stiffness
Simple handling and assembly
Special versions on request

APPLICATION

Research and development
Process measuring and control technology
Fully automated machining centres
Measuring and control devices
Tool engineering
Special mechanical engineering

Lorenz sensor torque sensor DR-2477-P-100NM dimension：

Lorenz sensor torque sensor DR-2477-P-100NM series models：

DR-2477-P-100NM

DR-2477/DR-2477-P

If you want to know more about DR-2477-P-100NM price, DR-2477-P-100NM delivery time, DR-2477-P-100NM manufacturer, DR-2477-P-100NM product information, DR-2477-P-100NM product specification,DR-2477-P-100NM technical parameters, DR-2477-P-100NM installation and debugging, DR-2477-P-100NM wiring mode, please contact E-mail:sales@hnhtsz.com
