Lorenz Torque Sensor

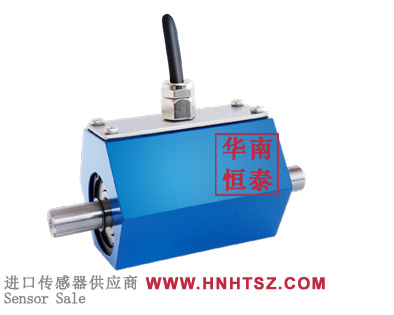

DR-2477-P-1NM torque sensor

Accuracy class 0.05%, optional
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1
Model:DR-2477/DR-2477-P
Product description: DR-2477-P-1NM the sensor has a non-contact digital signal transmission from the rotor to the stator without signal tampering of the measurement data. Therefore, it is highly accurate and maintenance-f
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DR-2477-P-1NM modular design, easy and quick installation. users can choose the appropriate installation mode according to the actual requirements, such as shaft end installation, flange installation, etc. at the same time, the sensor is also equipped with a complete range of accessories and tools, making the installation process easier and more convenient.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

Website display products are limited, If you can't find the product you need, please contact us

【Support services】
Lorenz sensorManufacturer's supply，quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【Lorenz sensor torque sensor DR-2477-P-1NM information】

Note: The following information is for reference, Please refer to Lorenz sensor version
Lorenz sensor torque sensor DR-2477-P-1NM datasheet download：

Lorenz sensor torque sensor DR-2477-P-1NM features：
DR-2477-P-1NM This sensor has a contactless and digital signal transmission from rotor to stator without signal falsification of the measurement data. It is therefore highly accurate and maintenance-free.

FEATURES
Torque sensor for e.g. test bench applications
Active output ±5V, (optional ±10V)
Speed up to 10000 min-1

For stiff and floating sensor assembly
Very short axial length
High torsional stiffness
Simple handling and assembly
Special versions on request

APPLICATION

Research and development
Process measuring and control technology
Fully automated machining centres
Measuring and control devices
Tool engineering
Special mechanical engineering

Lorenz sensor torque sensor DR-2477-P-1NM dimension：

Lorenz sensor torque sensor DR-2477-P-1NM series models：

DR-2477-P-1NM

DR-2477/DR-2477-P

If you want to know more about DR-2477-P-1NM price, DR-2477-P-1NM delivery time, DR-2477-P-1NM manufacturer, DR-2477-P-1NM product information, DR-2477-P-1NM product specification,DR-2477-P-1NM technical parameters, DR-2477-P-1NM installation and debugging, DR-2477-P-1NM wiring mode, please contact E-mail:sales@hnhtsz.com
