MINEBEA load cell

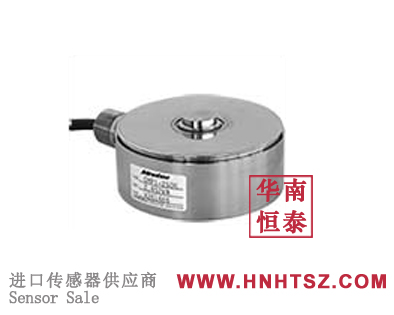

CMP1-20T load cell

Shape: Disk type load cell
Material: Stainless steel
Load direction：Compression
Model:CMP1-250K,CMP1-500K,CMP1-1T,CMP1-2T, CMP1-5T, CMP1-10T, CMP1-20T
Product description: CMP1-20T,Minebea automated assembly load cellCMP1-20T,Minebea 3c product test load cell CMP1-20T,Minebea automotive press fit load cell CMP1-20T
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale CMP1-20T combines the basic characteristics of the sensor, has the advantages of sensitive force response, rapid response, and provides a very unique advantage - compact and flexible, so that the weighing sensor can be used to accommodate the very small space of the force sensor, at the same time alloy steel, sealing design, waterproof, and flexible. Moisture-proof and anti dirty functions.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【Minebea load cell CMP1-20T information】
Minebea load cell CMP1-20T is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to Minebea version
Minebea load cell CMP1-20T datasheet download：

Minebea load cell CMP1-20T features：
●Material: Stainless steel

●Rated Capacities: 250k,500k,1t,2t,5t,10t,20t

●Sensitivity：1mV/V ± 0.05%(CMP1-250K),2mV/V ± 0.05%(CMP1-500K ~20t)

●Safe Overload: 150%

●Breaking Overload: .00%

Minebea load cell CMP1-20T dimension：

Minebea load cell CMP1-20T series models：

CMP1-250K,CMP1-500K,CMP1-1T,CMP1-2T, CMP1-5T, CMP1-10T, CMP1-20T

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales Minebeais compact size, universal structure, low cross-section, sealed, cable-type output, output signals of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring micro-weighing sensor rare excellent recommendation.

If you want to know more about Minebea price, Minebea delivery time, Minebea manufacturer, Minebea product information, Minebea product specification, Minebea technical parameters, Minebea installation and debugging, Minebea wiring mode, please contact E-mail:sales@hnhtsz.com
