MINEBEA load cell

U3B1-200K-B load cell

Shape: S tyep load cell
Material:Aluminium alloy
Load direction：compression & tention
Model:U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B
Product description: U3B1-200K-B can be used for Compression & tention measurement, can be used alone or with more, easy to install, debugging, applied to:tension measurement, batching systems, Blending & mixing systems,
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale U3B1-200K-B is a universal structure, sealed, cable-type output, output signal of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring type of weighing sensor rare excellent recommendations, including hook scale, belt scale, batching system, packaging scale, mechanical and electrical scale and Special weighing device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【Minebea load cell U3B1-200K-Binformation】
Minebea load cell U3B1-200K-B is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to Minebea version
Minebea load cell U3B1-200K-B datasheet download：

Minebea load cell U3B1-200K-B features：
●Material: Alunminum（196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf}）;Alloy steel(4.903 kN{500 kgf},9.807 kN{1 tf} )

●Rated Capacities: 196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf},4.903 kN{500 kgf},9.807 kN{1 tf}

●Sensitivity：3.0 ± 0.015 mV/V

●Safe Overload: 150%

●Breaking Overload: 200%

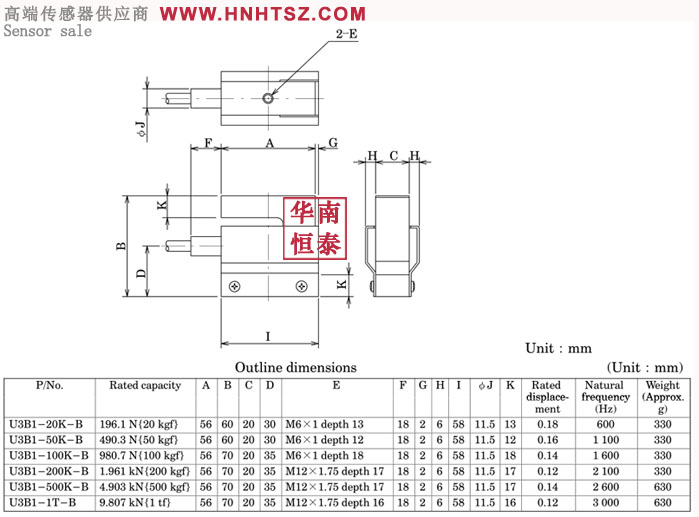

Minebea load cell U3B1-200K-B dimension：

Minebea load cell U3B1-200K-B series models：

U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales U3B1-200K-Bis a universal structure, sealed, cable-type output, output signal of a variety of optional (voltage/current), widely used in automation equipment for weighing or force measurement, is a force-measuring type of weighing sensor rare excellent recommendations, including hook scale, belt scale, batching system, packaging scale, mechanical and electrical scale and Special weighing device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

If you want to know more about U3B1-200K-B price, U3B1-200K-B delivery time, U3B1-200K-B manufacturer, U3B1-200K-B product information, U3B1-200K-B product specification, U3B1-200K-B technical parameters, U3B1-200K-B installation and debugging, U3B1-200K-B wiring mode, please contact E-mail:sales@hnhtsz.com
