MINEBEA load cell

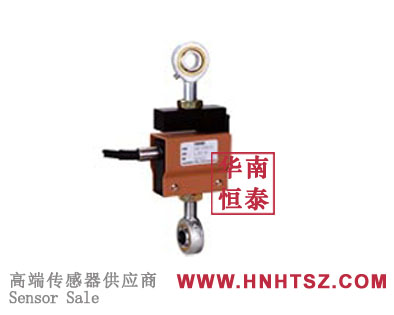

U3B1-20K-B load cell

Shape: S tyep load cell
Material:Aluminium alloy
Load direction：compression & tention
Model:U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B
Product description: U3B1-20K-B can be used for Compression & tention measurement, can be used alone or with more, easy to install, debugging, applied to:tension measurement, batching systems, Blending & mixing systems,
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale U3B1-20K-B is the load cell is one of the hot-selling types in the load cell category, and it has won the mechanical designer's love for it with its unique design. The S-type design makes it suitable for tension measurement and tensile force measurement. It is easy to install with upper and lower hole thread mounting. The integral sealing process makes the load cell can be used in Various complicated use environments, even in harsh environments, such as hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine-reformed scales, hopper scales, etc. Electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【Minebea load cell U3B1-20K-Binformation】
Minebea load cell U3B1-20K-B is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to Minebea version
Minebea load cell U3B1-20K-B datasheet download：

Minebea load cell U3B1-20K-B features：
●Material: Alunminum（196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf}）;Alloy steel(4.903 kN{500 kgf},9.807 kN{1 tf} )

●Rated Capacities: 196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf},4.903 kN{500 kgf},9.807 kN{1 tf}

●Sensitivity：3.0 ± 0.015 mV/V

●Safe Overload: 150%

●Breaking Overload: 200%

Minebea load cell U3B1-20K-B dimension：

Minebea load cell U3B1-20K-B series models：

U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales U3B1-20K-Bis using resistance strain type weighing sensor principle of work, under the effect of external force, the elastomer (elastic element, sensitive beam) can produce elastic deformation, make its surface of the paste resistance strain gauge (cell) also with deformation and deformation, the resistance strain gauge, it will become bigger or smaller, and then through the corresponding measurement circuit to convert the resistance to electrical signals (voltage or current).

If you want to know more about U3B1-20K-B price, U3B1-20K-B delivery time, U3B1-20K-B manufacturer, U3B1-20K-B product information, U3B1-20K-B product specification, U3B1-20K-B technical parameters, U3B1-20K-B installation and debugging, U3B1-20K-B wiring mode, please contact E-mail:sales@hnhtsz.com
