MINEBEA load cell

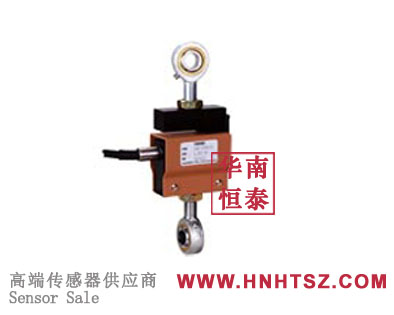

U3B1-500K-B load cell

Shape: S tyep load cell
Material:Alloy steel
Load direction：compression & tention
Model:U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B
Product description: U3B1-500K-B can be used for Compression & tention measurement, can be used alone or with more, easy to install, debugging, applied to:tension measurement, batching systems, Blending & mixing systems,
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd sale U3B1-500K-B is using resistance strain type weighing sensor principle of work, under the effect of external force, the elastomer (elastic element, sensitive beam) can produce elastic deformation, make its surface of the paste resistance strain gauge (cell) also with deformation and deformation, the resistance strain gauge, it will become bigger or smaller, and then through the corresponding measurement circuit to convert the resistance to electrical signals (voltage or current).

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【Minebea load cell U3B1-500K-Binformation】
Minebea load cell U3B1-500K-B is selling product in China, in stock,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to Minebea version
Minebea load cell U3B1-500K-B datasheet download：

Minebea load cell U3B1-500K-B features：
●Material: Alunminum（196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf}）;Alloy steel(4.903 kN{500 kgf},9.807 kN{1 tf} )

●Rated Capacities: 196.1 N{20 kgf},490.3 N{50 kgf},980.7 N{100 kgf},1.961 kN{200 kgf},4.903 kN{500 kgf},9.807 kN{1 tf}

●Sensitivity：3.0 ± 0.015 mV/V

●Safe Overload: 150%

●Breaking Overload: 200%

Minebea load cell U3B1-500K-B dimension：

Minebea load cell U3B1-500K-B series models：

U3B1-20K-B,U3B1-50K-B,U3B1-100K-B,U3B1-200K-B,U3B1-500K-B,U3B1-1T-B

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales U3B1-500K-Bis the load cell adopts the elastic body as double-connected or sheared S-beam structure, compact structure, used for tensile force and compression force measurement, strong lateral force resistance, high precision, good symmetry of pull and pressure output, stable and reliable performance. Wide range of measuring range, easy to install and use, suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales and other electronic weighing equipment .

If you want to know more about U3B1-500K-B price, U3B1-500K-B delivery time, U3B1-500K-B manufacturer, U3B1-500K-B product information, U3B1-500K-B product specification, U3B1-500K-B technical parameters, U3B1-500K-B installation and debugging, U3B1-500K-B wiring mode, please contact E-mail:sales@hnhtsz.com
