OAP Load Cell

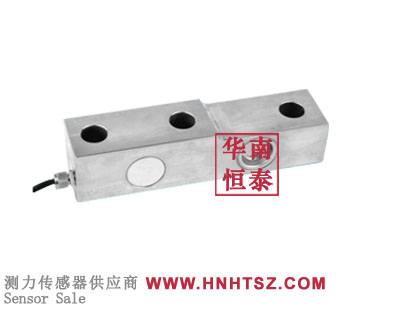

SBO-300kg load cell

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBO-100kg,SBO-200kg,SBO-300kg,SBO-500kg,SBO-1t,SBO-2t,SBO-3t,SBO-5t,SBO-10t,
Product description: SBO-300kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measur
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBO-300kg is a cantilever beam weighing sensor, good linearity, high precision, because the strain gauge is attached to the web of the i-beam, and the base axis into 45 degrees of orientation, it only measures the principal stress corresponding to the shear stress, not affected by bending stress, so good linearity, high precision.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【OAP load cell SBO-300kg information】
OAP load cell SBO-300kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to OAP version
OAP load cell SBO-300kg datasheet download：

OAP load cell SBO-300kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

OAP load cell SBO-300kg Applications：

SBO-300kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

OAP load cell SBO-300kg selection：
