OAP Load Cell

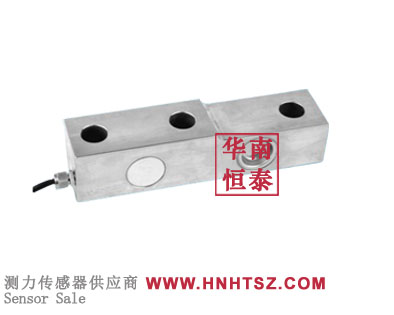

SBO-3t load cell

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBO-100kg,SBO-200kg,SBO-300kg,SBO-500kg,SBO-1t,SBO-2t,SBO-3t,SBO-5t,SBO-10t,
Product description: SBO-3t is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measureme
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBO-3t it is a cantilever beam weighing sensor. in the process of use, when the cantilever beam bears a certain load, the cantilever beam takes its fixed end as the fulcrum to undergo elastic deformation and bend. at the same time, the strain resistance sheet also produces corresponding deformation, and the shape variable is read or displayed by the measurement signal generation component.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【OAP load cell SBO-3t information】
OAP load cell SBO-3t is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to OAP version
OAP load cell SBO-3t datasheet download：

OAP load cell SBO-3t features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

OAP load cell SBO-3t Applications：

SBO-3t is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

OAP load cell SBO-3t selection：
