OAP Load Cell

SBT-A-1100kgLOAD CELL

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBT-0.22t,SBT-0.55t,SBT-1.1t,SBT-1.76t,SBT-2t,SBT-2.2t,SBT-4.4t,
Product description: SBT-A-1100kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight mea
INQUIRY

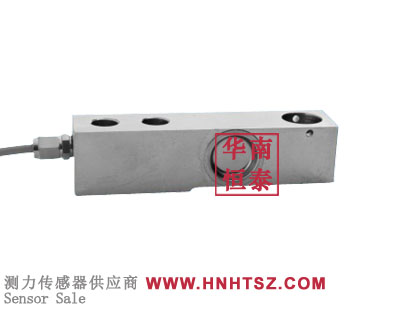

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBT-A-1100kg is a cantilever beam weighing sensor, one end fixed, one end loading, using steel ball force transfer, upper and lower pressure head bearing or double ball head structure, with a good sealing structure. good automatic aligning after force, easy installation, convenient use, good interchangeability.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【OAP LOAD CELL SBT-A-1100kg information】
OAP LOAD CELL SBT-A-1100kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to OAP version
OAP LOAD CELL SBT-A-1100kg datasheet download：

OAP LOAD CELL SBT-A-1100kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

OAP LOAD CELL SBT-A-1100kg Applications：

SBT-A-1100kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

OAP LOAD CELL SBT-A-1100kg selection：
