OAP Load Cell

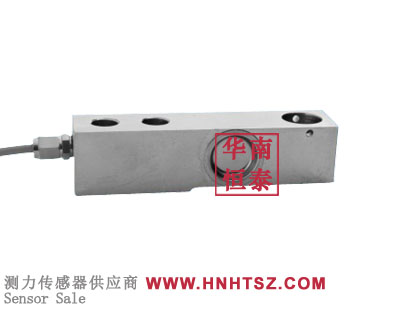

SBT-A-2200kgLOAD CELL

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SBT-0.22t,SBT-0.55t,SBT-1.1t,SBT-1.76t,SBT-2t,SBT-2.2t,SBT-4.4t,
Product description: SBT-A-2200kg is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight mea
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBT-A-2200kg is a cantilever beam weighing sensor, the cantilever beam sensor can also be called shear beam sensor, most of its shape is cuboid, strain area in the middle part of the sensor. generally, there are two fixed holes at the tail end and a pressure attachment at the front end to enable it to carry good weight. the advantages of the cantilever sensor are mainly reflected in the convenience of installation, two mounting holes can be easily fixed on the base or scale platform.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【OAP LOAD CELL SBT-A-2200kg information】
OAP LOAD CELL SBT-A-2200kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to OAP version
OAP LOAD CELL SBT-A-2200kg datasheet download：

OAP LOAD CELL SBT-A-2200kg features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

OAP LOAD CELL SBT-A-2200kg Applications：

SBT-A-2200kg is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

OAP LOAD CELL SBT-A-2200kg selection：
