REVERE TRANSDUCERS LOAD CELL

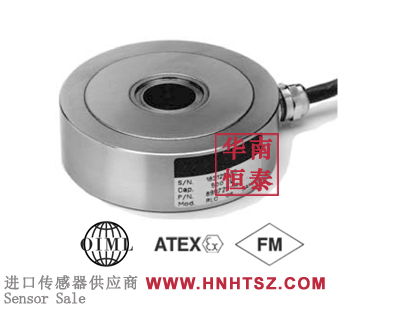

RLC-28T LOAD CELL

Shape:Ring Torsion Load Cell
Material:stainless steel construction
Load direction：compression
Model:RLC-0.25T-C3 RLC-0.5T-C3 RLC-1T-C3 RLC-2T-C3 RLC-3.5T-C3 RLC-5T-C3 RLC-10T-C3 RLC-28T-C3 RLC-60T-C3 RLC-250kg-C6 RLC-500kg-C6 RLC-1000kg-C6 RLC-2000kg-C6 RLC-3500kg-C6 RLC-5000kg-C6 RLC-10000kg-
Product description: RLC-28T is a low table, high performance stainless steel ring torsion ring type weighing sensor; Can be used with a single sensor, can also be used with multiple sensors, easy to install, debug, used
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale RLC-28T is compact size of the load cell, the high accuracy level and the low cost make it particularly suitable for low table design applications and industrial process weighing applications.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【REVERE TRANSDUCERS LOAD CELL RLC-28T information】
REVERE TRANSDUCERS LOAD CELL RLC-28T is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to REVERE TRANSDUCERS version
REVERE TRANSDUCERS LOAD CELL RLC-28T datasheet download：

REVERE TRANSDUCERS LOAD CELL RLC-28T features：
●Material: Stainless steel

●Rated Capacities: 0.25t, 0.5t, 1t, 2t, 3.5t, 5t, 10t, 28t, 60t

●Sensitivity：2 (1.75 for 0.25t, 2.05 for 10t)

●Maximum safe over load: 150%

●Ultimate over load: 300%

REVERE TRANSDUCERS LOAD CELL RLC-28T dimension：

REVERE TRANSDUCERS LOAD CELL RLC-28T series models：

RLC-0.25T RLC-0.5T RLC-1T RLC-2T RLC-3.5T RLC-5T RLC-10T RLC-28T RLC-60T

RLC-250kg RLC-500kg RLC-1000kg RLC-2000kg RLC-3500kg RLC-5000kg RLC-10000kg RLC-28000kg RLC-60000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales REVERE TRANSDUCERS is the twist ring design basis, combined with the low table design, the signal transmitter can be used to convert the MV signal of the sensor into a current or voltage signal; Or with digital display instrument, through RS485, MODBUS RTU to achieve the design needs of industrial automation system.

If you want to know more about REVERE TRANSDUCERS price, REVERE TRANSDUCERS delivery time, REVERE TRANSDUCERS manufacturer, REVERE TRANSDUCERS product information, REVERE TRANSDUCERS product specification, REVERE TRANSDUCERS technical parameters, REVERE TRANSDUCERS installation and debugging, REVERE TRANSDUCERS wiring mode, please contact E-mail:sales@hnhtsz.com
