SUNCELLS Load Cell

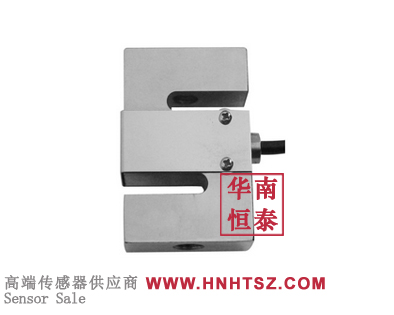

DEF-SS-250kg load cell

Shape:S type point load cell
Material:stainless steel construction
Load direction：compression or tension
Model:DEF-SS-50kg, DEF-SS-100kg, DEF-SS-150kg, DEF-SS-200kg, DEF-SS-250kg, DEF-SS-300kg, DEF-SS-500kg, DEF-SS-750kg, DEF-SS-1t, DEF-SS-1.2t, DEF-SS-1.5t, DEF-SS-2t, DEF-SS-3t, DEF-SS-5t
Product description: DEF-SS-250kg is S type structure, can be used in tension and pressure; Single sensor can be used, also can be used with a number of sensors, easy to install, debugging, suitable for material testing m
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale DEF-SS-250kg weighing sensor adopts the working principle of resistance strain type. under the action of external force, elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also be deformed along with the deformation. the resistance of the strain gauge will become larger or smaller. this change in resistance is then converted into an electrical signal (voltage or current) through the corresponding measuring circuit, thus completing the process of converting external forces into electrical signals. the sensor is made of alloy steel and sealed with plastic seal for easy installation and use. applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【SUNCELLS load cell DEF-SS-250kg information】
SUNCELLS load cell DEF-SS-250kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to SUNCELLS version
SUNCELLS load cell DEF-SS-250kg datasheet download：

SUNCELLS load cell DEF-SS-250kg features：

Range: 50,100,150,200,250,300,500,750kg,1,1.2,1.5,2,3,5t
S-type weighing sensor
High quality stainless steel material
Installation is simple, fast, stable and reliable
Suitable for material testing machine, batching scale, electromechanical combination scale and packaging scale

SUNCELLS load cell DEF-SS-250kg Applications：

This is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

SUNCELLS load cell DEF-SS-250kg selection：

SUNCELLS load cell DEF-SS-250kg series models：

DEF-SS-50kg, DEF-SS-100kg, DEF-SS-150kg, DEF-SS-200kg, DEF-SS-250kg, DEF-SS-300kg, DEF-SS-500kg, DEF-SS-750kg, DEF-SS-1t, DEF-SS-1.2t, DEF-SS-1.5t, DEF-SS-2t, DEF-SS-3t, DEF-SS-5t

DEF-ASS-50kg, DEF-ASS-100kg, DEF-ASS-150kg, DEF-ASS-200kg, DEF-ASS-250kg, DEF-ASS-300kg, DEF-ASS-500kg, DEF-ASS-750kg, DEF-ASS-1t, DEF-ASS-1.2t, DEF-ASS-1.5t, DEF-ASS-2t, DEF-ASS-3t, DEF-ASS-5t

DEE-SS-50kg, DEE-SS-100kg, DEE-SS-150kg, DEE-SS-200kg, DEE-SS-250kg, DEE-SS-300kg, DEE-SS-500kg, DEE-SS-750kg, DEE-SS-1t, DEE-SS-1.2t, DEE-SS-1.5t, DEE-SS-2t, DEE-SS-3t, DEE-SS-5t

DEE-ASS-50kg, DEE-ASS-100kg, DEE-ASS-150kg, DEE-ASS-200kg, DEE-ASS-250kg, DEE-ASS-300kg, DEE-ASS-500kg, DEE-ASS-750kg, DEE-ASS-1t, DEE-ASS-1.2t, DEE-ASS-1.5t, DEE-ASS-2t, DEE-ASS-3t, DEE-ASS-5t
