SUNCELLS Load Cell

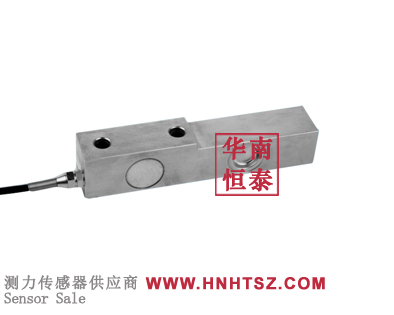

SB-A-20t load cell

Shape:single-ended Shear Beam
Material:alloy steel construction
Load direction：compression
Model:SB-300kg,SB-500kg,SB-1t,SB-2t,SB-3t,SB-5t,SB-7.5t,SB-8t,SB-10t,SB-15t,SB-20t,SB-25t
Product description: SB-A-20t is adopts cantilever beam structure and the force direction is pressure. It can be used with a single sensor or multiple sensors. It is easy to install and debug. It is used in weight measure
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SB-A-20t it is a cantilever beam weighing sensor. in the process of use, when the cantilever beam bears a certain load, the cantilever beam takes its fixed end as the fulcrum to undergo elastic deformation and bend. at the same time, the strain resistance sheet also produces corresponding deformation, and the shape variable is read or displayed by the measurement signal generation component.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【SUNCELLS load cell SB-A-20t information】
SUNCELLS load cell SB-A-20t is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to SUNCELLS version
SUNCELLS load cell SB-A-20t datasheet download：

SUNCELLS load cell SB-A-20t features：
Internal glue sealing, oil proof, waterproof, corrosion resistant;
Single shear beam structure design, easy to install and use;
The output signal is not affected by the change of the bearing point;
Good linearity and high precision;
Simple structure, easy to seal, long-term stability, durable;
It is applied to the weight measurement of large tanks and hoppers, the measurement control of crane scales and automobile scales, to the batching system of mixing and distributing various raw materials, the automatic detection in the production process and the control of powder and particle feed quantity.

SUNCELLS load cell SB-A-20t Applications：

SB-A-20t is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with multiple sensors, easy to install, debugging.

SUNCELLS load cell SB-A-20t selection：
