TRANSCELL LOAD CELL

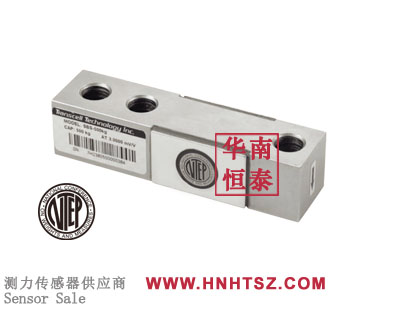

SBS-5T Single ended shear beam load cell

Shape: Single ended shear beam load cell
Material: alloy steel
Wire length: 6m
Model:SBS-250lb SBS-250kg SBS-500kg SBS-1000kg SBS-1500kg SBS-2000kg SBS-2500kg SBS-5000KG SBS-7500KG SBS-10000KG SBS-1T SBS-1.5T SBS-2T SBS-2.5T SBS-5T SBS-7.5T SBS-10T
Product description: SBS-5TSingle ended shear beam load cell can be used single or multiple, high precision, high stability, unique bearing blind hole design, easy to install, fast, suitable for platform scale, mixing sta
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale SBS-5T it is a sensor based on the principle of mechanics, and its core component is a cantilever beam. one end is fixed, the other end is free, and when subjected to external forces, the cantilever will be deformed. this deformation is converted into an electrical signal output by the elastic element inside the sensor, so as to measure the external force. because of its simple structure, high measurement accuracy and fast response speed, the cantilever beam sensor is widely used in various occasions where force measurement is required.

Inquiry for Quotation→E-mail:sales@hnhtsz.com

【Support services】
In stock,quality assurance, price concessions, fast delivery.
Warranty period: 12 months
Provide sensor technology support and selection recommendation

【TRANSCELL manufacturer Single ended shear beam load cell SBS-5T information】

Note: The following information is for reference, Please refer to TRANSCELL manufacturer version
TRANSCELL manufacturer Single ended shear beam load cell SBS-5T datasheet download：

TRANSCELL manufacturer Single ended shear beam load cell SBS-5T features：
Single ended shear beam load cell
Alloy steel construction
Easy to install
NTEP certified
Explosion-proof grade：
Ex ia ⅡC T4~T6 Ga
Ex iaD 20 T85~T135
High accuracy
High stability
Protected against corrosion by nickel-plated treatment
Suitable for floor scales, blending & mixing systems, belt scales and batching systems, etc.

TRANSCELL manufacturer Single ended shear beam load cell SBS-5T dimension：

TRANSCELL manufacturer Single ended shear beam load cell SBS-5T series models：

SBS-5T SBS-250lb SBS-250kg SBS-500kg SBS-1000kg SBS-1500kg SBS-2000kg SBS-2500kg SBS-5000KG SBS-7500KG SBS-10000KG SBS-1T SBS-1.5T SBS-2T SBS-2.5T SBS-5T SBS-7.5T SBS-10T

If you want to know more about SBS-5T price, SBS-5T delivery time, SBS-5T manufacturer, SBS-5T product information, SBS-5T product specification,SBS-5T technical parameters, SBS-5T installation and debugging, SBS-5T wiring mode, please contact E-mail:sales@hnhtsz.com
