REVERE TRANSDUCERS LOAD CELL

9363-B10-5K-20P1 LOAD CELL

Shape:S-type load cell
Material:stainless steel construction
Load direction：Suitable for tensile and pressure bearing tests
Model:9363-50kg 9363-100kg 9363-250kg 9363-500kg 9363-1000kg 9363-2500kg 9363-5000kg 9363-7500kg 9363-10000kg 9363-1T 9363-2.5T 9363-5T 9363-7.5T 9363-10T
Product description: 9363-B10-5K-20P1 is a high-performance stainless steel S-type load cell; It can be used with a single sensor or multiple sensors. It is easy to install and debug, and can be used in silo weighing, tan
INQUIRY

China Shenzhen Huanan Hengtai Industrial Co.,Ltd sale 9363-B10-5K-20P1 is the S-type tension sensor is a commonly used sensor in sensors. It is mainly used to measure the compression and tension between solids. It is often called a tension sensor because it looks like an S-shape, also known as S. The type of tension compression sensor is screwed up by the upper and lower holes, which makes the installation convenient and practical. The overall structure is smooth, and the glue is sealed at the edge, so that the load cell can be used in various environments, such as hooks. Scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine-reformed scales, hopper scales and other electronic weighing equipment.

If you have any question, welcome to E-mail:sales@hnhtsz.com

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 information】
VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to VISHAY REVERE TRANSDUCERS version
VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 datasheet download：

VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 features：
●Material: Stainless steel

●Rated Capacities:

50kg, 100kg, 250kg, 500kg, 1000kg, 2500kg, 5000kg, 7500kg, 10000kg
50lbs, 75lbs, 100lbs, 150lbs, 200lbs, 250lbs, 300lbs, 500lbs, 750lbs, 1Klbs, 1.5Klbs, 2Klbs,
3Klbs, 5Klbs, 10Klbs, 15Klbs, 20Klbs

●Sensitivity：3.0mV/V

●Maximum safe over load: 150%

●Ultimate over load: 300%

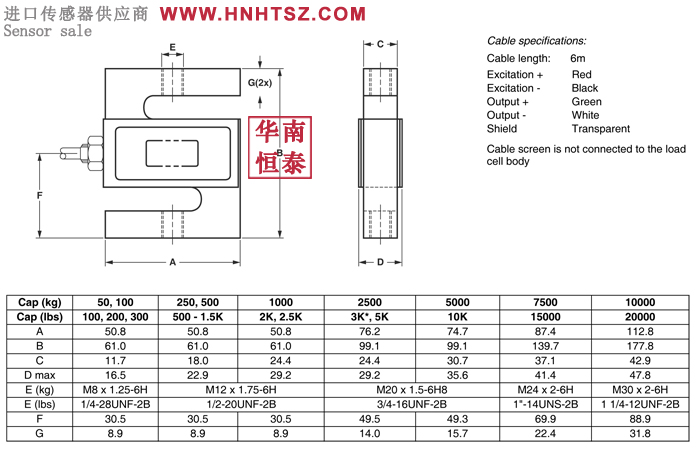

VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 dimension：

VISHAY REVERE TRANSDUCERS LOAD CELL 9363-B10-5K-20P1 series models：

9363-50kg 9363-100kg 9363-250kg 9363-500kg 9363-1000kg 9363-2500kg 9363-5000kg 9363-7500kg 9363-10000kg 9363-1T 9363-2.5T 9363-5T 9363-7.5T 9363-10T

9363-50lbs 9363-75lbs 9363-100lbs 9363-150lbs 9363-200lbs 9363-250lbs 9363-300lbs 9363-500lbs 9363-750lbs 9363-1Klbs 9363-1.5Klbs 9363-2Klbs 9363-3Klbs 9363-5Klbs 9363-10Klbs 9363-15Klbs 9363-20Klbs

Shenzhen Huanan Hengtai Industrial Co.,Ltd sales VISHAY REVERE TRANSDUCERSis structure belongs to the S-type design. The S-type tension pressure sensor is the most commonly used pull and pressure sensor in industrial applications. It is widely used in water conservancy and hydropower, railway transportation, intelligent building, production automation, aerospace, military, petrochemical, oil well, Power, ships, machine tools, pipelines and many other industries. The sensor is made of High quality metal and sealed with sealant for easy installation and convenient use. Applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

If you want to know more about VISHAY REVERE TRANSDUCERS price, VISHAY REVERE TRANSDUCERS delivery time, VISHAY REVERE TRANSDUCERS manufacturer, VISHAY REVERE TRANSDUCERS product information, VISHAY REVERE TRANSDUCERS product specification, VISHAY REVERE TRANSDUCERS technical parameters, VISHAY REVERE TRANSDUCERS installation and debugging, VISHAY REVERE TRANSDUCERS wiring mode, please contact E-mail:sales@hnhtsz.com
