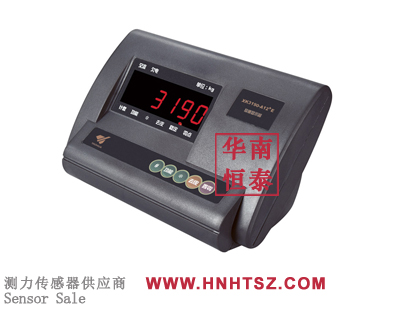

XK3190-A12+E weighing display instrument

XK3190-A12+ Weighing display instrument Product Performance Description:

Basic function

High-precision A/D conversion, readability up to 1/30000;

It is convenient to call the internal code display and replace the sensitivity weight observation and analysis tolerance;

Special software technology to enhance the vibration resistance of the system;

Zero tracking range, zero setting (boot/manual) range, can be set separately;

The speed, amplitude and stability time of digital filtering can be set.

With weighing and counting function; (Single weight with power off protection)

Multiple backlight modes to choose from;

Random charging; Undervoltage indication and protection device;

6V/4AH maintenance-free batteries are configured

assorting

Technical parameter

A/D conversion mode :Σ-Δ conversion mode

A/D conversion rate :20 times/second

Maximum A/D conversion :20bit

Input signal range :-10mV ~ 15mV

Input sensitivity :≥1μV/e

Sensor bridge power supply C5V;
