ZEMIC LOAD CELL

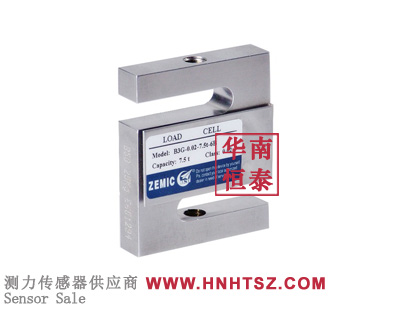

B3G-C3-1T-6B load cell

Shape:S type point load cell
Material:Stainless steel material
Load direction：compression or tension
Model:B3G-C3-25KG-6B,B3G-C3-50KG-6B,B3G-C3-100KG-6B,B3G-C3-150KG-6B,B3G-C3-250KG-6B,B3G-C3-500KG-6B,B3G-C3-1T-6B,B3G-C3-2.5T-6B,B3G-C3-5T-6B,B3G-C3-7.5T-6B,B3G-C3-10T-6B,B3G-C3-20K-6YT
Product description: B3G-C3-1T-6Bis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and an
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale B3G-C3-1T-6B due to the particularity of the upper and lower holes, the weighing sensor can be used for tension measurement and pressure measurement, and the internal sealing is filled with glue, which provides convenience for the weighing sensor to be used in a variety of environments. due to the tight sealing, to ensure that the weighing sensor in the process of use, not affected by the surrounding environment, in the process of use to ensure the stability of the data, while extending the service life of the weighing sensor, such as in the environment with moisture, up moisture-proof effect; in the case of dust or air chaos, up dust-proof effect; in the case of oil pollution or pollution is relatively heavy, play the role of anti-pollution and anti-oil; so the weighing sensor is one of the most widely used sensors.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell B3G-C3-1T-6B information】
ZEMIC load cell B3G-C3-1T-6B is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell B3G-C3-1T-6B datasheet download：

ZEMIC load cell B3G-C3-1T-6B features：

Range: 0.025-10t

Stainless steel material, S-shaped structure, rubber seal, tensile or compressive bearing;

Protection grade IP67;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

OIML Certification, Certificate number: R60/2000-CN1-06.02;

German PTB test, Certificate No. : D09-06.07;

NTEP Certification, Certificate number: 06-099A1.

ZEMIC load cell B3G-C3-1T-6B Applications：

B3G-C3-1T-6B is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell B3G-C3-1T-6B selection：

ZEMIC load cell B3G-C3-1T-6B series models：

B3G-C3-25KG-6B,B3G-C3-50KG-6B,B3G-C3-100KG-6B,B3G-C3-150KG-6B,B3G-C3-250KG-6B,B3G-C3-500KG-6B,B3G-C3-1T-6B,B3G-C3-2.5T-6B,B3G-C3-5T-6B,B3G-C3-7.5T-6B,B3G-C3-10T-6B,B3G-C3-20K-6YT
