ZEMIC LOAD CELL

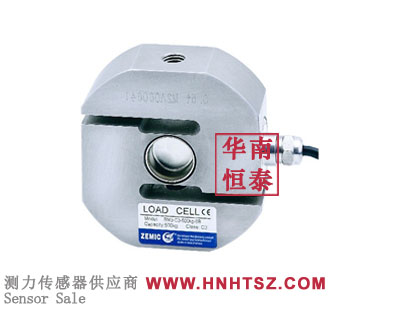

BM3-C3-5T-6 load cell

Shape:S type point load cell
Material:Stainless steel material
Load direction：compression or tension
Model:BM3-C3-500KG-3B,BM3-C3-1T-6B,BM3-C3-2T-6B,BM3-C3-2.5T-6B,BM3-C3-3T-6B,BM3-C3-4T-6B,BM3-C3-5T-6,BM3-C3-6T-6B,BM3-C3-7.5T-6B
Product description: BM3-C3-5T-6is S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and ant
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale BM3-C3-5T-6 weighing sensor adopts the working principle of resistance strain type. under the action of external force, elastic body (elastic element, sensitive beam) will undergo elastic deformation, so that the resistance strain gauge (conversion element) pasted on its surface will also be deformed along with the deformation. the resistance of the strain gauge will become larger or smaller. this change in resistance is then converted into an electrical signal (voltage or current) through the corresponding measuring circuit, thus completing the process of converting external forces into electrical signals. the sensor is made of alloy steel and sealed with plastic seal for easy installation and use. applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell BM3-C3-5T-6 information】
ZEMIC load cell BM3-C3-5T-6 is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell BM3-C3-5T-6 datasheet download：

ZEMIC load cell BM3-C3-5T-6 features：

Range: 0.5t~7.5t

Stainless steel material, S-shaped structure, welded seal, pull or pressure bearing;

Protection grade IP68;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

OIML Certification, Certificate number: R60/2000-DE1-10.08;

NTEP Certification, Certificate number: 06-099A1

ZEMIC load cell BM3-C3-5T-6 Applications：

BM3-C3-5T-6 is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell BM3-C3-5T-6 selection：
