ZEMIC LOAD CELL

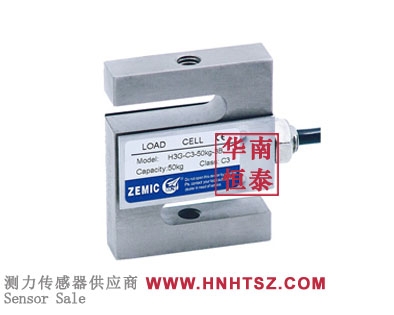

H3G-C3-2K-6YT load cell

Shape:S type point load cell
Material:alloy steel material
Load direction：compression or tension
Model:H3G-C3-50KG-6B,H3G-C3-100KG-6B,H3G-C3-200KG-6B,H3G-C3-250KG-6B,H3G-C3-300KG-6B,H3G-C3-500KG-6B,H3G-C3-1T-6B,H3G-C3-2.5T-6B,H3G-C3-5T-6B,H3G-C3-7.5T-6B,H3G-C3-2K-6YT
Product description: H3G-C3-2K-6YTis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and a
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale H3G-C3-2K-6YT structure belongs to the s-type design, s-type tension pressure sensor is the most commonly used in industrial applications of a kind of tension, pressure sensor, widely used in water conservancy and hydropower, railway traffic, intelligent buildings, automatic control of production, aerospace, military, petrochemical, oil wells, electric power, ships, machine tools, pipelines and other industries. the sensor is made of alloy steel and sealed with sealant, easy to install and use. suitable for hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell H3G-C3-2K-6YT information】
ZEMIC load cell H3G-C3-2K-6YT is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell H3G-C3-2K-6YT datasheet download：

ZEMIC load cell H3G-C3-2K-6YT features：

Range: 0.05t-7.5t

Alloy steel material, nickel-plated, S-shaped structure, rubber seal, tensile or compressive bearing;

Protection grade IP67;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

NTEP Certification, Certificate No. 06-099A1

OIML Certification, certificate number R60/2000-NL1-10.30

ZEMIC load cell H3G-C3-2K-6YT Applications：

H3G-C3-2K-6YT is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell H3G-C3-2K-6YT selection：

ZEMIC load cell H3G-C3-2K-6YT series models：

H3G-C3-50KG-6B,H3G-C3-100KG-6B,H3G-C3-200KG-6B,H3G-C3-250KG-6B,H3G-C3-300KG-6B,H3G-C3-500KG-6B,H3G-C3-1T-6B,H3G-C3-2.5T-6B,H3G-C3-5T-6B,H3G-C3-7.5T-6B,H3G-C3-2K-6YT
