ZEMIC LOAD CELL

h3-c3-20t-3b load cell

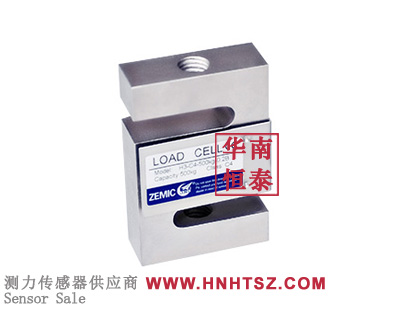

Shape:S type point load cell
Material:alloy steel material
Load direction：compression or tension
Model:H3-C3-25KG-3B H3-C3-50KG-3B H3-C3-100KG-3B H3-C3-150KG-3B H3-C3-200KG-3B H3-C3-250KG-3B H3-C3-300KG-3B H3-C3-500KG-3B H3-C3-600KG-3B H3-C3-750KG-3B H3-C3-1T-3B H3-C3-1.5T-3B H3-C3-2T-3B H3-C3-2.
Product description: h3-c3-20t-3bis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and an
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale h3-c3-20t-3b weighing sensor adopts elastomer as double connecting hole or shear s-beam structure, compact structure, used for tensile force and compression force measurement, strong lateral force resistance, high precision, tensile and compression output symmetry, stable and reliable performance, wide range, easy to install and use, applicable to hook scale, belt scale, batching system, packaging scale, mechanical and electrical combination scale and special force measuring device, hook scale, machine scale, hopper scale and other electronic weighing equipment.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell h3-c3-20t-3b information】
ZEMIC load cell h3-c3-20t-3b is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell h3-c3-20t-3b datasheet download：

ZEMIC load cell h3-c3-20t-3b features：

Nickel plated alloy steel IP67 “S” type load cell
Tension and compression applications
Suitable for hanging, hopper and other weighing devices
Also available in imperial capacities and dimensions

ZEMIC load cell h3-c3-20t-3b Applications：

h3-c3-20t-3b is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell h3-c3-20t-3b selection：

ZEMIC load cell h3-c3-20t-3b series models：

h3-c3-25kg-3b,h3-c3-50kg-3b,h3-c3-100kg-3b,h3-c3-150kg-3b,h3-c3-200kg-3b,h3-c3-250kg-3b,h3-c3-300kg-3b,h3-c3-500kg-3b,h3-c3-600kg-3b,h3-c3-750kg-3b,h3-c3-1t-3b,h3-c3-1.5t-3b,h3-c3-2t-3b,h3-c3-2.5t-3b,h3-c3-3t-3b,h3-c3-5t-3b,h3-c3-7.5t-3b,h3-c3-10t-3b,h3-c3-15t-3b,h3-c3-20t-3b,h3-c3-30t-3b,h3-c3-25k-6yb
