ZEMIC LOAD CELL

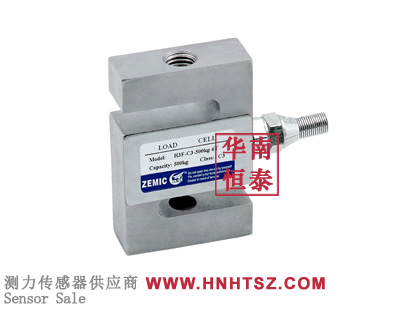

h3f-c3-2t-6t load cell

Shape:S type point load cell
Material:alloy steel material
Load direction：compression or tension
Model:h3f-c3-50kg-6t,h3f-c3-100kg-6t,h3f-c3-250kg-6t,h3f-c3-500kg-6t,h3f-c3-750kg-6t,h3f-c3-1t-6t,h3f-c3-1.5t-6t,h3f-c3-2t-6t,h3f-c3-2.5t-6t,h3f-c3-5t-6t,h3f-c3-20k-6yt
Product description: h3f-c3-2t-6tis S type structure, tensile pressure can be used; The application of advanced sealing technology, can work in high humidity environment, with strong torsional resistance, anti-side and an
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd sale h3f-c3-2t-6t

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ZEMIC load cell h3f-c3-2t-6t information】
ZEMIC load cell h3f-c3-2t-6t is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com

Note: The following information is for reference, Please refer to ZEMIC version
ZEMIC load cell h3f-c3-2t-6t datasheet download：

ZEMIC load cell h3f-c3-2t-6t features：

Range: 0.05-5t

Alloy steel material, nickel-plated, S-shaped structure, rubber seal, tensile or compressive bearing;

Protection grade IP67;

Suitable for hook scale, machine scale, hopper scale and other kinds of electronic weighing equipment;

NTEP Certification, Certificate number: 06-099A1.

ZEMIC load cell h3f-c3-2t-6t Applications：

h3f-c3-2t-6t is a high precision and cost-effective compression weighing solution, very suitable for a variety of applications, for pressure measurement, can be used with a single sensor, can also be used with a number of sensors, easy to install, debugging, suitable for material testing machine, batching scale, mixing station, belt scale, packaging scale, hook scale, machine scale, hopper scale and other types of electronic weighing equipment.

ZEMIC load cell h3f-c3-2t-6t selection：

ZEMIC load cell h3f-c3-2t-6t series models：

h3f-c3-50kg-6t,h3f-c3-100kg-6t,h3f-c3-250kg-6t,h3f-c3-500kg-6t,h3f-c3-750kg-6t,h3f-c3-1t-6t,h3f-c3-1.5t-6t,h3f-c3-2t-6t,h3f-c3-2.5t-6t,h3f-c3-5t-6t,h3f-c3-20k-6yt
