ANYLOAD Load Cell

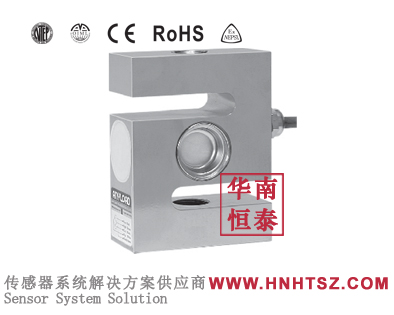

101BS-500Lb load cell

Shape: S Type load cell
Material:17-4PH Stainless Steel
Load direction：Compression & tention
Model:101BS-300kg 101BS-500kg 101BS-1t 101BS-2t 101BS-5t 101BS-10t 101BS-500Lb 101BS-1Klb 101BS-1.5Klb 101BS-2Klb 101BS-5Klb 101BS-10Klb 101BS-15Klb 101BS-20Klb
Product description: 101BS-500Lb is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformation
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd 101BS-500Lb is the compact design makes the weighing sensor an ideal choice for applications such as clamping force, bolt load, and other compression loads. With its sealed structure and environmental protection design, the series has been proven to work reliably in various industrial applications in complex environments.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101BS-500Lb information】
ANYLOAD load cell 101BS-500Lb is hot selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101BS-500Lb datasheet download：

ANYLOAD load cell 101BS-500Lb features：

●Material: Stainless steel

● Rated Capacities: 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t

● Full Scale Output: 2mV/V ± 1%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP68

●NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

●NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

● OIML MAA C3, Y=17 000 certified from 200kg-1.5t

●MAA C4.5, Y=14 000 certified from 2t-10t

●CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101BS-500Lb dimension：

ANYLOAD load cell 101BS-500Lb series models：

101BS-300kg 101BS-500kg 101BS-1t 101BS-2t 101BS-5t 101BS-10t 101BS-500Lb 101BS-1Klb 101BS-1.5Klb 101BS-2Klb 101BS-5Klb 101BS-10Klb 101BS-15Klb 101BS-20Klb

101BS-1000kg 101BS-2000kg 101BS-5000kg 101BS-10000kg

101BS-1000lb 101BS-1500lb 101BS-2000lb 101BS-5000lb 101BS-10000lb 101BS-15000lb 101BS-20000lb

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 101BS-500Lbis the compact design makes the weighing sensor an ideal choice for applications such as clamping force, bolt load, and other compression loads. With its sealed structure and environmental protection design, the series has been proven to work reliably in various industrial applications in complex environments.

If you want to know more about 101BS-500Lb price, 101BS-500Lb delivery time, 101BS-500Lb manufacturer, 101BS-500Lb product information, 101BS-500Lb product specification, 101BS-500Lb technical parameters, 101BS-500Lb installation and debugging, 101BS-500Lb wiring mode, please contact E-mail:sales@hnhtsz.com
