ANYLOAD Load Cell

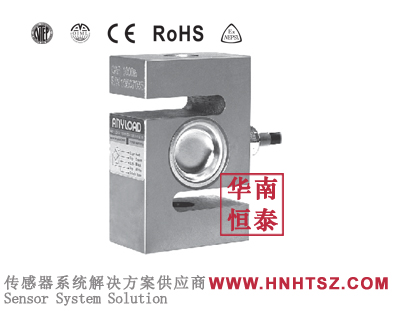

101NH-1500lb load cell

Shape: S Type load cell
Material:Alloy steel
Load direction：Compression & tention
Model:101NH-50Lb 1101NH-100Lb 101NH-250Lb 01NH-500Lb 101NH-700Lb 101NH-1Klb 101NH-1.5Klb 101NH-2Klb 101NH-5Klb 101NH-10Klb 101NH-15Klb 101NH-20Klb
Product description: 101NH-1500lb is a kind of universal material testing machine, which can be used either single or multiple at the same time. It is easy to install and debug. Application: Mechanical scale transformatio
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd. 101NH-1500lb is easy to install, high precision, stable performance, glue sealing, dust-proof, moisture-proof, compact structure, fine workmanship, simple installation method, can meet the needs of many electronic weighing.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 101NH-1500lb information】
ANYLOAD load cell 101NH-1500lb is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 101NH-1500lb datasheet download：

ANYLOAD load cell 101NH-1500lb features：

● Material: Alloy steel

●Rated Capacities: 25lb, 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb

●Full Scale Output: 3mV/V ± 1%

●Safe Overload: 150%

●Breaking Overload: 300%

● IP Rating: IP67

● NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb

● NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb

●OIML MAA C3, Y=17 000 certified from 200kg-1.5t

●OIML MAA C4.5, Y=14 000 certified from 2t-10t

● CE, RoHS and Ex certified

●Measurement Ukraine certified

ANYLOAD load cell 101NH-1500lb dimension：

ANYLOAD load cell 101NH-1500lb series models：

101NH-50Lb 1101NH-100Lb 101NH-250Lb 01NH-500Lb 101NH-700Lb 101NH-1Klb 101NH-1.5Klb 101NH-2Klb 101NH-5Klb 101NH-10Klb 101NH-15Klb 101NH-20Klb

101NH-1000lb 101NH-1500lb 101NH-2000lb 101NH-5000lb 101NH-10000lb 101NH-15000lb 101NH-20000lb

Shenzhen Huanan Hengtai Industrial Co.,Ltd . supply 101NH-1500lbis the S-type pull and pressure sensor are the most common sensors in the sensor. They are mainly used to measure the tension and pressure between solids. It is also called the S-type pull pressure sensor. Because it looks like an S shape, it is used. Also known as the S-type load cell. Sealed with sealant, easy to install and easy to use. Applicable to all kinds of electronic weighing equipment suitable for hook scales, belt scales, batching systems, packaging scales, electromechanical combination scales and special force measuring devices, hook scales, machine scales, hopper scales, etc.

If you want to know more about 101NH-1500lb price, 101NH-1500lb delivery time, 101NH-1500lb manufacturer, 101NH-1500lb product information, 101NH-1500lb product specification, 101NH-1500lb technical parameters, 101NH-1500lb installation and debugging, 101NH-1500lb wiring mode, please contact E-mail:sales@hnhtsz.com
