ANYLOAD Load Cell

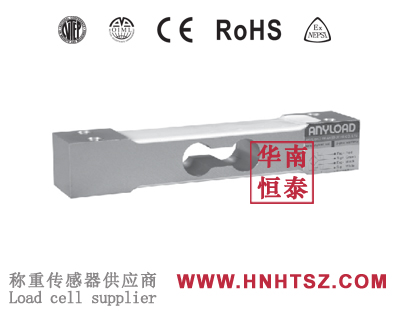

108BA-35kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression,but also can borrow parts for tension
Model:108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg
Product description: 108BA-35kgis a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electronic
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108BA-35kg Is unique intentions, selection of fine metal materials, coupled with improved process of glue seals, everywhere reveals excellent texture, is the international level of meticulous forging, high precision, low cost electronic weighing machine and other OEM applications ideal choice.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108BA-35kg information】
ANYLOAD load cell 108BA-35kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108BA-35kg datasheet download：

ANYLOAD load cell 108BA-35kg features：

●Material: Aluminum

●Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●OIML C3, Y=4 300 certified from 10kg-150kg

●CE, RoHS, NTEP, and Ex certified

●Measurement Ukraine certified

●Measurement Spain certified

ANYLOAD load cell 108BA-35kg dimension：

ANYLOAD load cell 108BA-35kg series models：

108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg

Shenzhen HNHT supplies 108BA-35kgis single-point sensor, simple and fashionable shape design, clean atmosphere, texture, this sensor is specially designed for electronic weighing, easy to fit into any needs of its various designs, stable performance, high precision, easy to install.

If you want to know more about 108BA-35kg price, 108BA-35kg delivery time, 108BA-35kg manufacturer, 108BA-35kg product information, 108BA-35kg product specification, 108BA-35kg technical parameters, 108BA-35kg installation and debugging, 108BA-35kg wiring mode, please contact E-mail:sales@hnhtsz.com
