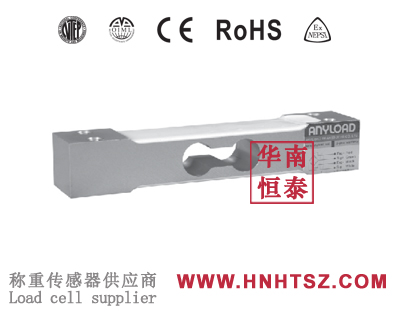

ANYLOAD Load Cell

108BA-60kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression,but also can borrow parts for tension
Model:108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg
Product description: 108BA-60kgis a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electronic
INQUIRY

Chinese Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108BA-60kg is a single-point sensor with compact structure, beautiful appearance, convenient installation, glue sealing, high precision, excellent force measurement performance and long-term stability.

Note: The following information is for reference, Please refer to ANYLOAD version

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108BA-60kg information】
ANYLOAD load cell 108BA-60kg is selling product in China, quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108BA-60kg datasheet download：

ANYLOAD load cell 108BA-60kg features：

●Material: Aluminum

●Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●OIML C3, Y=4 300 certified from 10kg-150kg

●CE, RoHS, NTEP, and Ex certified

●Measurement Ukraine certified

●Measurement Spain certified

ANYLOAD load cell 108BA-60kg dimension：

ANYLOAD load cell 108BA-60kg series models：

108BA-3kg 108BA-6kg 108BA-15kg 108BA-20kg 108BA-30kg 108BA-35kg 108BA-40kg 108BA-50kg 108BA-60kg 108BA-75kg 108BA-100kg 108BA-150kg

Shenzhen HNHT supplies 108BA-60kgis made of metal material, colorless anodizing and glue sealing. It has high precision, strong anti bias load, simple structure and easy installation. It is suitable for electronic scales, counting scales, electronic balances and industrial weighing systems.

If you want to know more about 108BA-60kg price, 108BA-60kg delivery time, 108BA-60kg manufacturer, 108BA-60kg product information, 108BA-60kg product specification, 108BA-60kg technical parameters, 108BA-60kg installation and debugging, 108BA-60kg wiring mode, please contact E-mail:sales@hnhtsz.com
