ANYLOAD Load Cell

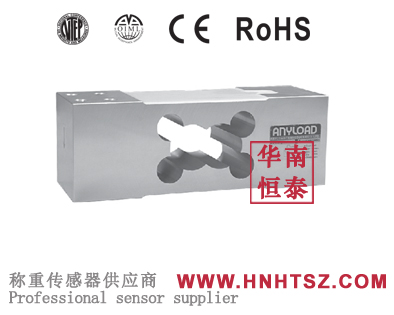

108CA-150kg load cell

Shape:Single point type load cell
Material:Aluminum
Load direction：Widely used in compression
Model:108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t
Product description: 108CA-150kg is a low-cost, high-precision sensor, which can be directly installed on the base of the scale or used in weighing and force measurement. It can be applied to the packaging scale, electron
INQUIRY

Shenzhen Huanan Hengtai Industrial Co.,Ltd supply 108CA-150kg Is unique intentions, selection of fine metal materials, coupled with improved process of glue seals, everywhere reveals excellent texture, is the international level of meticulous forging, high precision, low cost electronic weighing machine and other OEM applications ideal choice.

【Support services】
Warranty period: 12 months
Provide sensor technology support and selection recommendation
【ANYLOAD load cell 108CA-150kg information】
ANYLOAD load cell 108CA-150kg is hot selling product in China,quality goods, after-sale protection. If you have any question, welcome to E-mail:sales@hnhtsz.com
ANYLOAD load cell 108CA-150kg datasheet download：

ANYLOAD load cell 108CA-150kg features：

●Material: Aluminum

●Rated Capacities: 10kg, 20kg,30kg, 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t

●Full Scale Output: 2mV/V ± 10%

●Safe Overload: 150%

●Breaking Overload: 300%

●IP Rating: IP66

●NTEP 1:4 000, Class III, Single Cell certified from 200kg-2t

●OIML C3, Y=4 300 certified from 10kg-500kg

●CE and RoHS certified

●Measurement Ukraine certified

●Measurement Spain certified
ANYLOAD load cell 108CA-150kg dimension：

ANYLOAD load cell 108CA-150kg series models：

108CA-10kg 108CA-20kg 108CA-30kg 108CA-60kg 108CA-100kg 108CA-150kg 108CA-200kg 108CA-250kg 108CA-300kg 108CA-500kg 108CA-600kg 108CA-750kg 108CA-1t

108CA-1000kg

Shenzhen Huanan Hengtai Industrial Co.,Ltd 108CA-150kgis a rare design, reflecting a unique rigid design, so that it has good adaptability, can be used in a variety of weighing scale design, easy to install, easy to use.

If you want to know more about 108CA-150kg price, 108CA-150kg delivery time, 108CA-150kg manufacturer, 108CA-150kg product information, 108CA-150kg product specification, 108CA-150kg technical parameters, 108CA-150kg installation and debugging, 108CA-150kg wiring mode, please contact E-mail:sales@hnhtsz.com
